2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Yaw Rate Sensor
Component ID: 278
Component : SENSOR-DYNAMICS

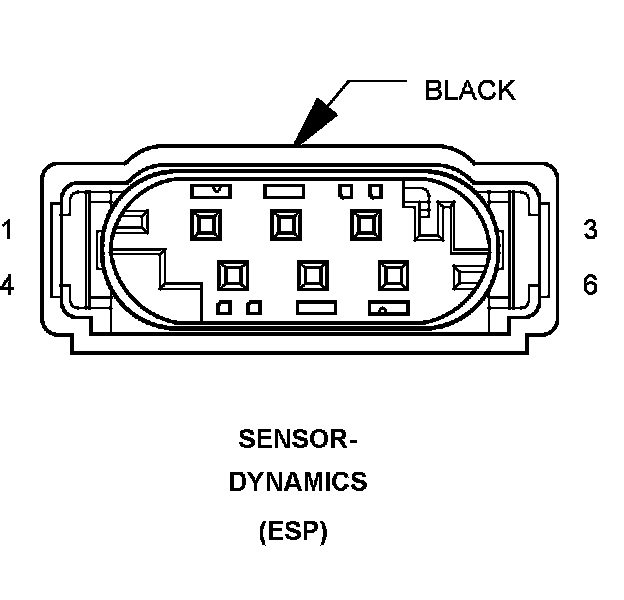

Connector:
Name : SENSOR-DYNAMICS
Color : BLACK
# of pins : 6
Qualifier : (ESP)
Pin Circuit Description
1 D464 20WT/YL DYNAMICS SENSOR LOW DATA LINK
2 D465 20WT/DB DYNAMICS SENSOR HIGH DATA LINK
3 G4 20VT/LB DYNAMICS SENSOR SUPPLY
4 - -
5 G94 20VT/DB DYNAMICS SENSOR GROUND
6 - -

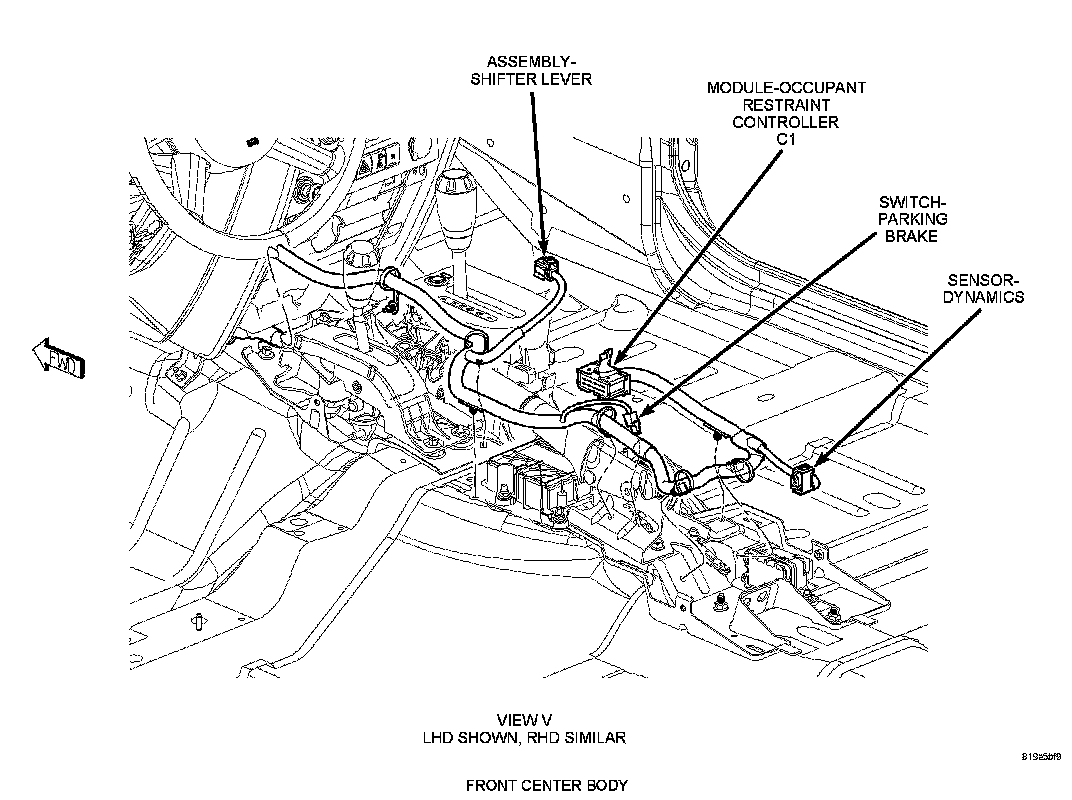

Component Location - 16
