2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch, A/T
Component ID: 308

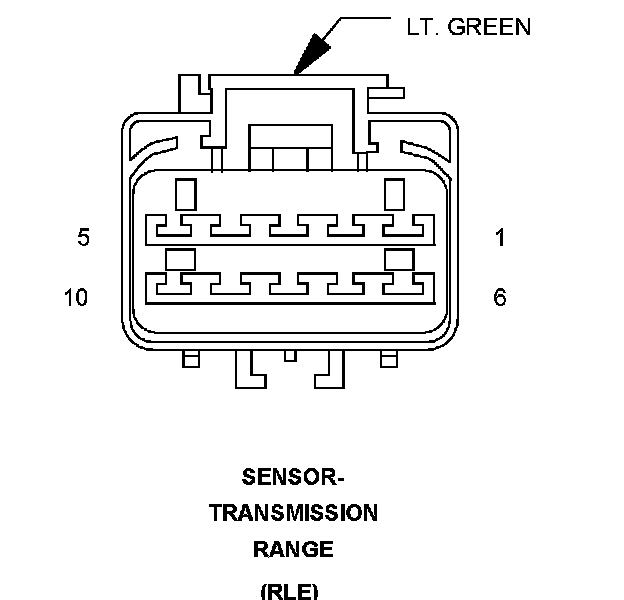

Component : SENSOR-TRANSMISSION RANGE
Connector:
Name : SENSOR-TRANSMISSION RANGE
Color : LT. GREEN
# of pins : 10
Qualifier : (RLE)
Pin Circuit Description
1 - -
2 - -
3 T13 18DG/VT SENSOR GROUND
4 T54 18DG/OR TRANSMISSION TEMPERATURE SIGNAL
5 - -
6 - -
7 T1 18DG/LB TRS T1 SIGNAL
8 T3 18DG/DB TRS T3 SIGNAL
9 T42 18DG/YL TRS T42 SIGNAL
10 T41 18YL/DB TRS T41 SIGNAL
