2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE

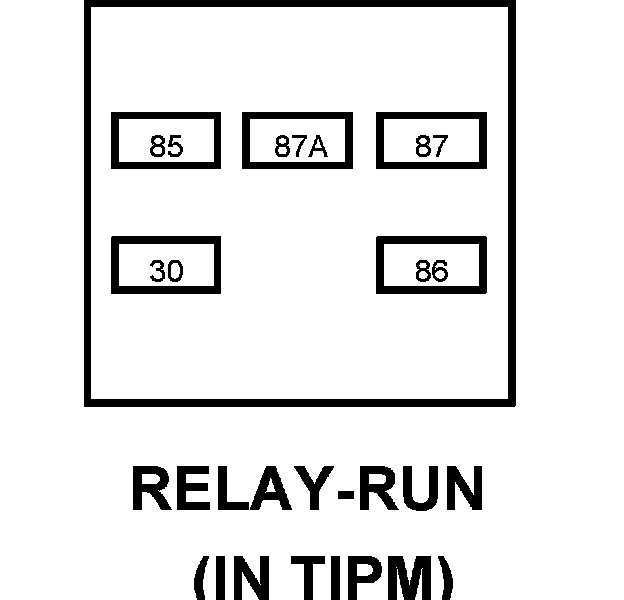

Relay-Run
Component ID: 181
Component : RELAY-RUN
Connector:
Name : RELAY-RUN
Color :
# of pins : 0
30 INTERNAL B(+)
85 INTERNAL B(+)
86 INTERNAL RUN RELAY CONTROL
87 INTERNAL RUN RELAY OUTPUT
87A - -
