2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Switch-Power Window-Rear
Component ID: 344

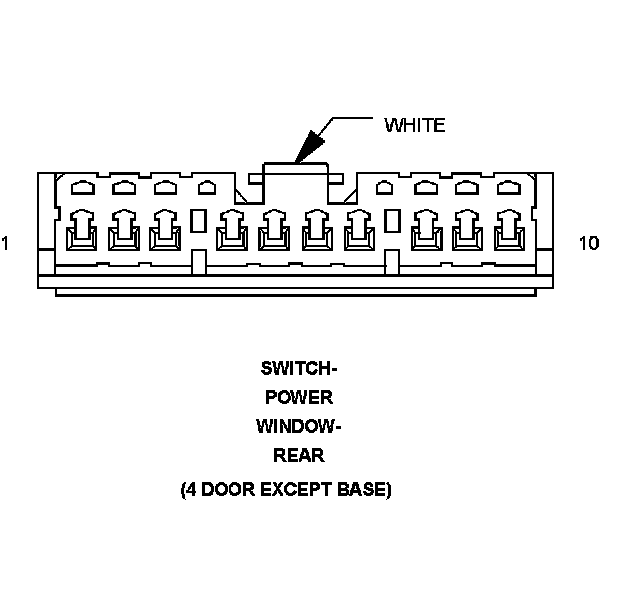

Component : SWITCH-POWER WINDOW-REAR
Connector:
Name : SWITCH-POWER WINDOW-REAR
Color : WHITE
# of pins : 10
Qualifier : (4 DOOR EXCEPT BASE)
Pin Circuit Description
1 Q612 14DB/OR MASTER WINDOW SWITCH RIGHT REAR (DOWN)
2 Q112 14BR/OR RIGHT REAR WINDOW DRIVER (UP)
3 Q212 14OR/VT RIGHT REAR WINDOW DRIVER (DOWN)
4 Q412 14LB/OR MASTER WINDOW SWITCH RIGHT REAR (UP)
5 Q15 14GY/OR WINDOW LOCK OUT SWITCH OUTPUT
6 Q15 14GY/OR WINDOW LOCK OUT SWITCH OUTPUT
7 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
8 Q211 14TN/LB LEFT REAR WINDOW DRIVER (DOWN)
9 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
10 Q111 14TN/YL LEFT REAR WINDOW DRIVER (UP)
