2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE

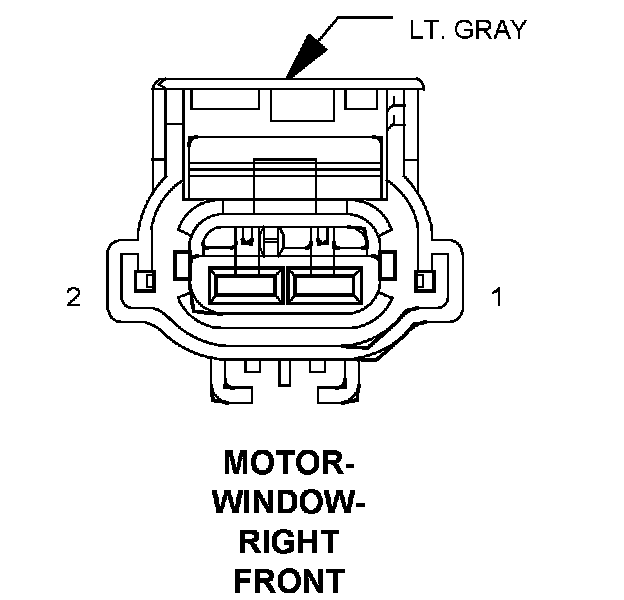

Motor-Window-Right Front
Component ID: 164
Component : MOTOR-WINDOW-RIGHT FRONT
Connector:
Name : MOTOR-WINDOW-RIGHT FRONT
Color : LT. GRAY
# of pins : 2
Pin Circuit Description
1 Q22 14VT/WT RIGHT FRONT WINDOW DRIVER (DOWN)
2 Q12 14BR/LB RIGHT FRONT WINDOW DRIVER (UP)
