2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Assembly-Line Pressure Sensor/Variable Force Solenoid
Component ID: 14

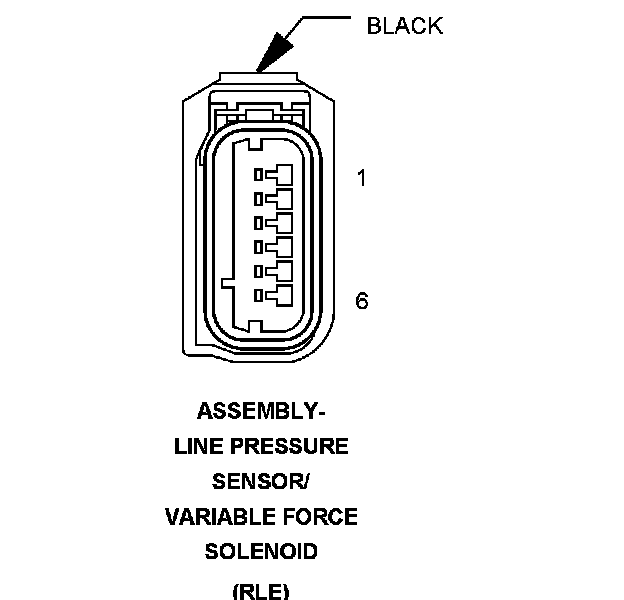

Component : ASSEMBLY-LINE PRESSURE SENSOR/VARIABLE FORCE SOLENOID
Connector:
Name : ASSEMBLY-LINE PRESSURE SENSOR/VARIABLE FORCE SOLENOID
Color : BLACK
# of pins : 6
Qualifier : (RLE)
Pin Circuit Description
1 - -
2 F856 18YL/PK 5 VOLT SUPPLY
3 T38 18YL/BR LINE PRESSURE SIGNAL
4 K900 18DB/DG SENSOR GROUND
5 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
6 T118 18DG LP VFS CONTROL
