2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
EGR Valve
Component ID: 12

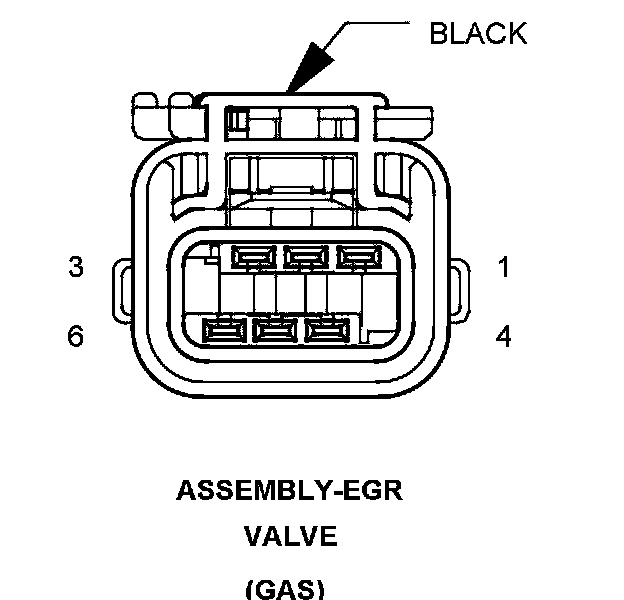

Component : ASSEMBLY-EGR VALVE
Connector:
Name : ASSEMBLY-EGR VALVE
Color : BLACK
# of pins : 6
Qualifier : (GAS)
Pin Circuit Description
1 K34 18DB/LG EGR SIGNAL
2 F856 18PK/YL 5 VOLT SUPPLY
3 K900 18DB/DG SENSOR GROUND
4 Z906 18BK GROUND
6 K35 16DB/VT EGR CONTROL
6 K35 18DB/VT EGR CONTROL
