2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Crankshaft Position Sensor
Component ID: 277
Component : SENSOR-CRANKSHAFT POSITION

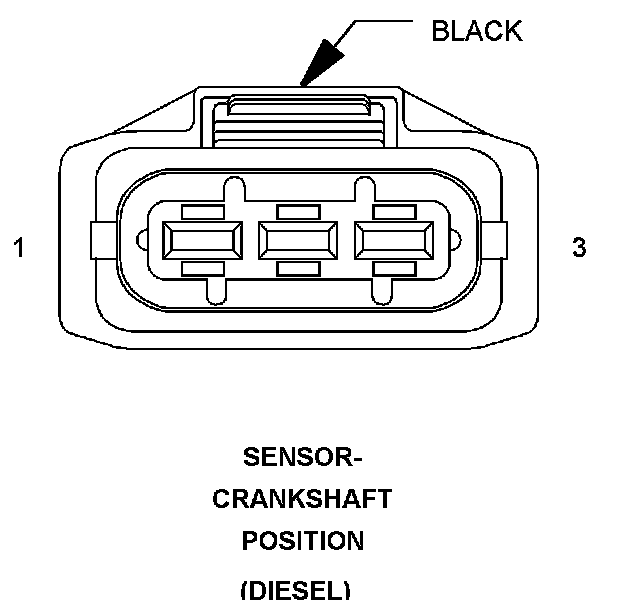

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3
Qualifier : (DIESEL)
Pin Circuit Description
1 K853 18DB/BR CKP 5 VOLT SUPPLY
2 K925 18DB/GY CKP SENSOR GROUND
3 K24 18BR/LB CKP SIGNAL

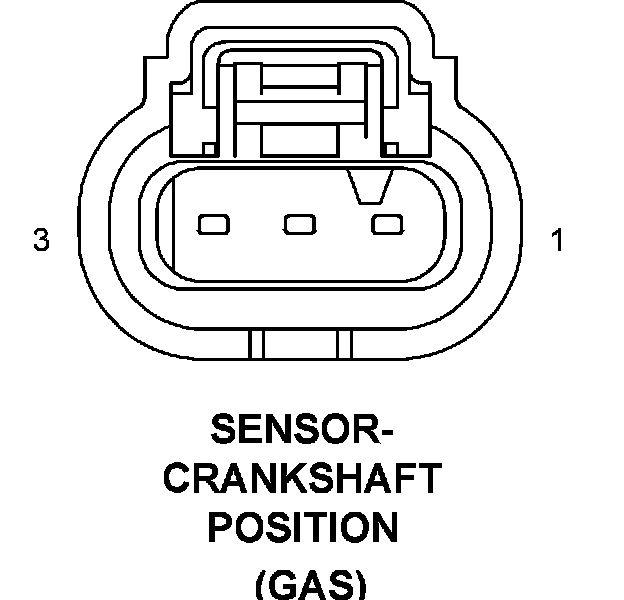

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color :
# of pins : 3
Qualifier : (GAS)
Pin Circuit Description
1 F855 18PK/YL 5 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K24 18BR/LB CKP SIGNAL
