2008 Jeep Wrangler 4WD V6-3.8L
Control Module, Transfer Case
2008 Jeep Wrangler 4WD V6-3.8LSECTION Control Module, Transfer Case
Component ID: 149

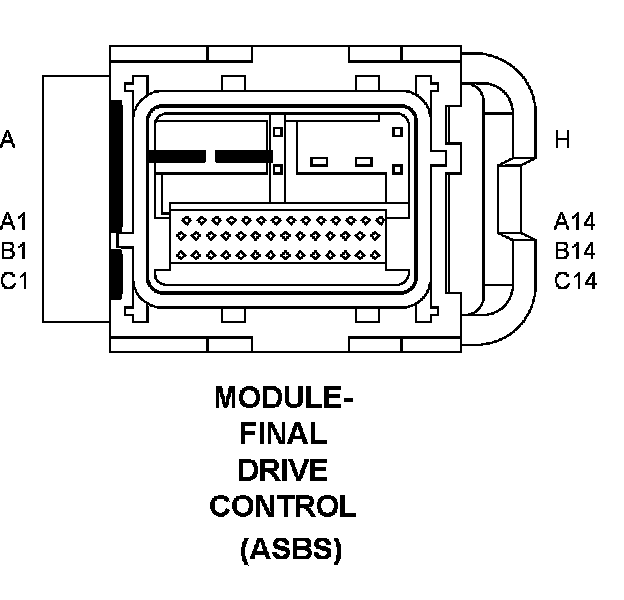

Component : MODULE-FINAL DRIVE CONTROL
Connector:
Name : MODULE-FINAL DRIVE CONTROL
Color :
# of pins : 50
Qualifier : (ASBS)
A - -
A1 - -
A2 - -
A3 - -
A4 - -
A5 - -
A6 D65 20WT/LG CAN C BUS (+)
A7 D64 20WT/LB CAN C BUS (-)
A8 - -
A9 - -
A10 - -
A11 - -
A12 - -
A13 - -
A14 - -
B A959 14RD FUSED B(+)
B1 F941 20PK/LG FUSED RUN/START RELAY OUTPUT
B2 - -
B3 - -
B4 - -
B5 - -
B6 - -
B7 - -
B8 - -
B9 - -
B10 - -
B11 - -
B12 - -
B13 - -
B14 - -
C - -
C1 - -
C2 - -
C3 - -
C4 - -
C5 - -
C6 - -
C7 - -
C8 - -
C9 - -
C10 - -
C11 - -
C12 - -
C13 - -
C14 - -
D - -
E Z905 14BK GROUND
F Z905 14BK GROUND
G - -
H - -
