2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Compressor Clutch
Component ID: 52

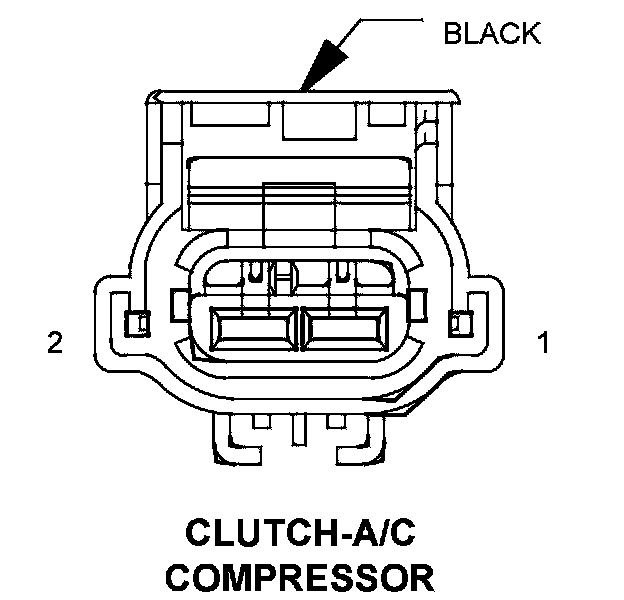

Component : CLUTCH-A/C COMPRESSOR
Connector:
Name : CLUTCH-A/C COMPRESSOR
Color : BLACK
# of pins : 2
Pin Circuit Description
1 C3 20DB/YL A/C CLUTCH CONTROL OUTPUT
Pin Circuit Description
1 C3 18DB/YL A/C CLUTCH CONTROL OUTPUT
2 Z906 20BK GROUND
2 Z906 18BK GROUND
