2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE

Assembly-Tail Lamp-Left

Component ID: 16
Component : ASSEMBLY-TAIL LAMP-LEFT

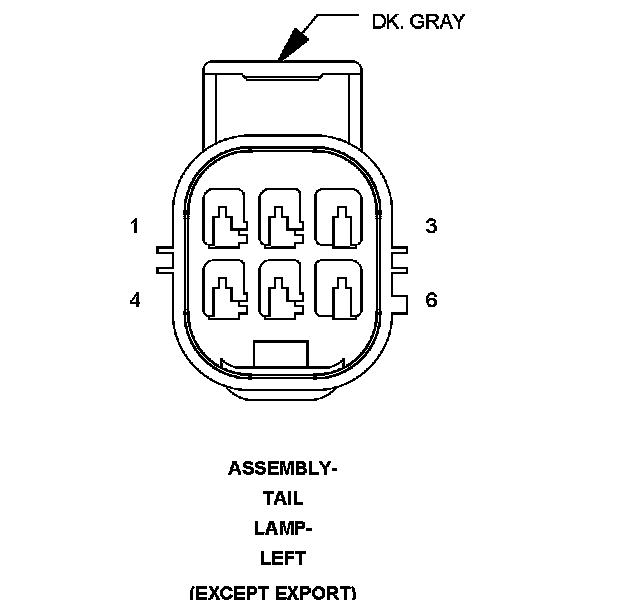

Connector:
Name : ASSEMBLY-TAIL LAMP-LEFT
Color : DK. GRAY
# of pins : 6
Qualifier : (EXCEPT EXPORT)

Pin Circuit Description
1 Z912 18BK GROUND
2 L17 18WT/OR LEFT REAR PARK LAMP CONTROL OUTPUT
3 L63 18WT/DG LEFT REAR STOP/TURN SIGNAL CONTROL
4 L1 18WT/GY BACKUP LAMP CONTROL OUTPUT
5 L62 18WT/YL RIGHT REAR STOP/TURN SIGNAL CONTROL
6 - -

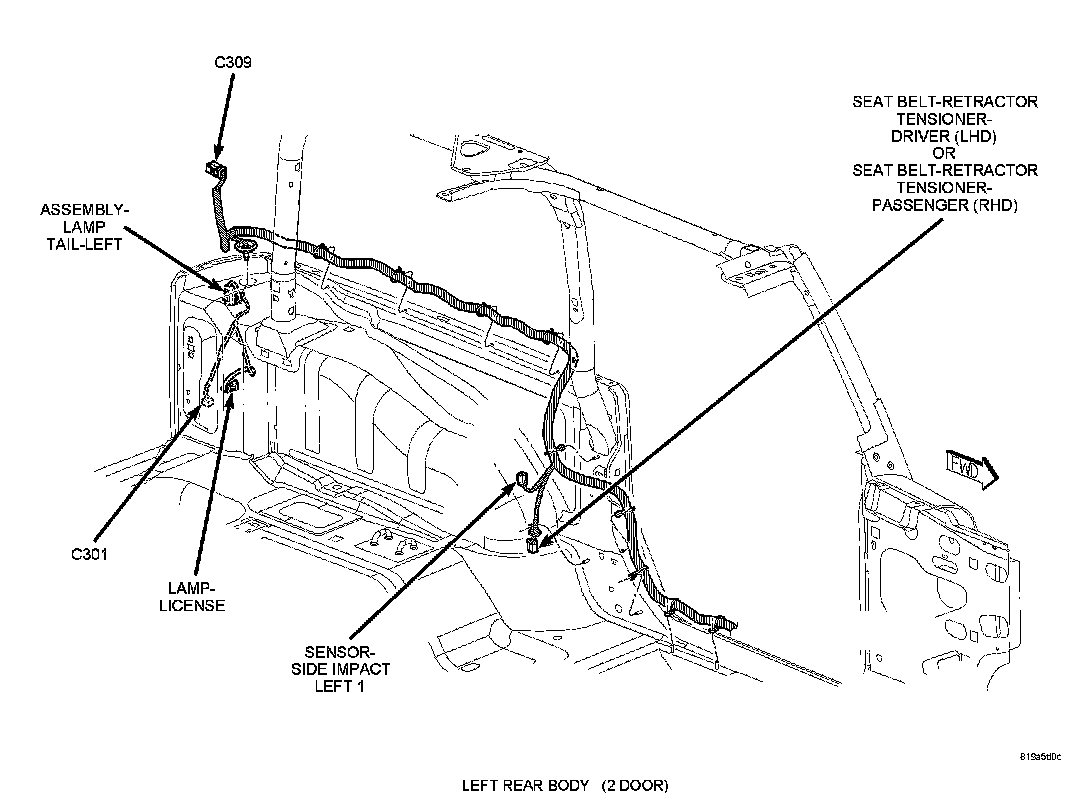

Component Location - 18

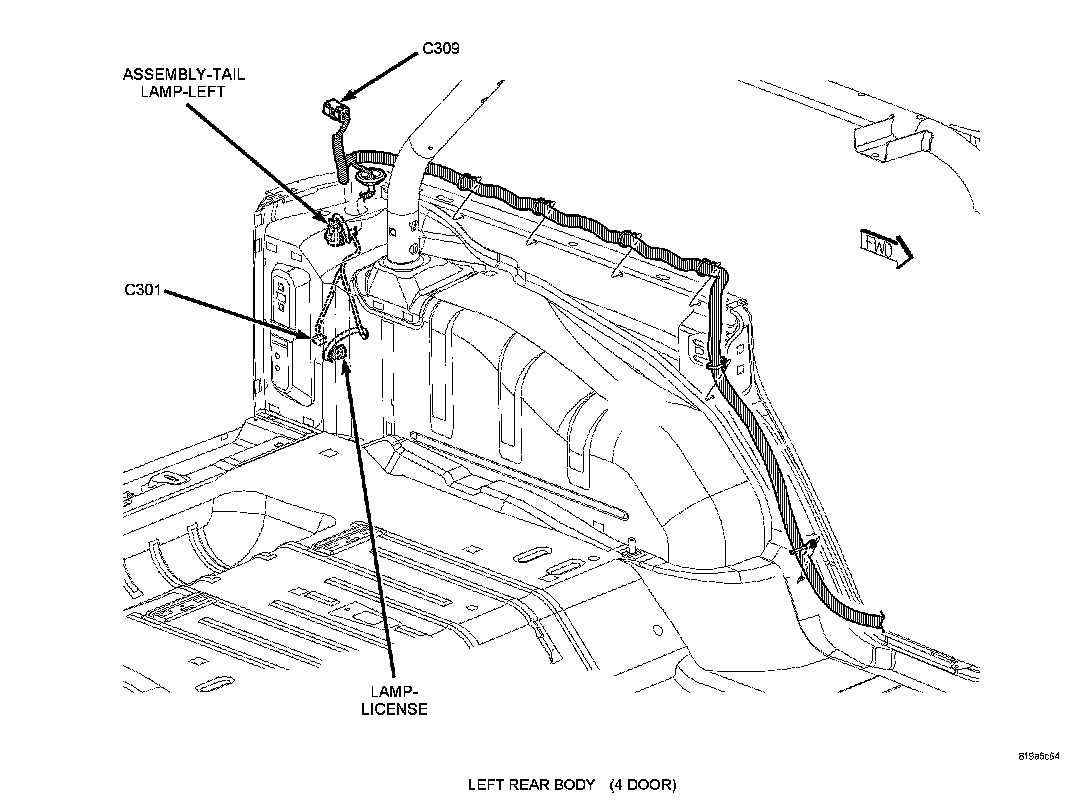

Component Location - 23

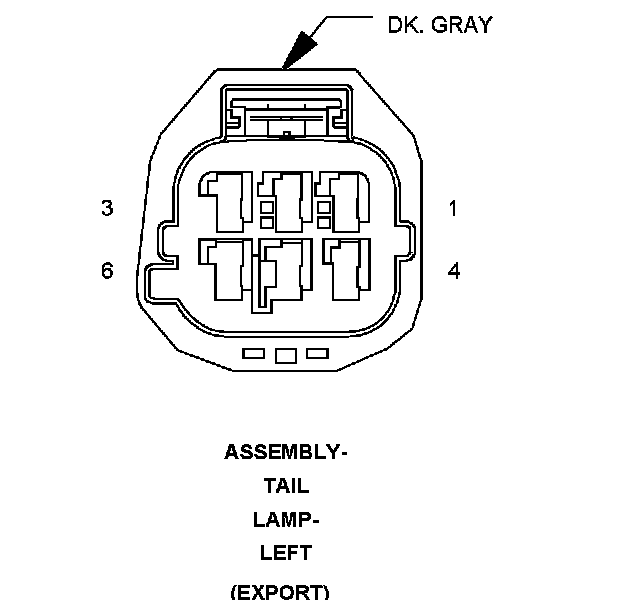

Connector:
Name : ASSEMBLY-TAIL LAMP-LEFT
Color : DK. GRAY
# of pins : 6
Qualifier : (EXPORT)

Pin Circuit Description
1 Z912 18BK GROUND
2 L17 18WT/OR LEFT REAR PARK LAMP CONTROL OUTPUT
3 L53 18DG/WT LEFT REAR STOP SIGNAL CONTROL
4 L1 18WT/GY BACKUP LAMP CONTROL OUTPUT
5 L63 18WT/DG LEFT REAR STOP/TURN SIGNAL CONTROL
6 - -

Component Location - 18

Component Location - 23
