2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Alternator
Component ID: 107
Component : GENERATOR

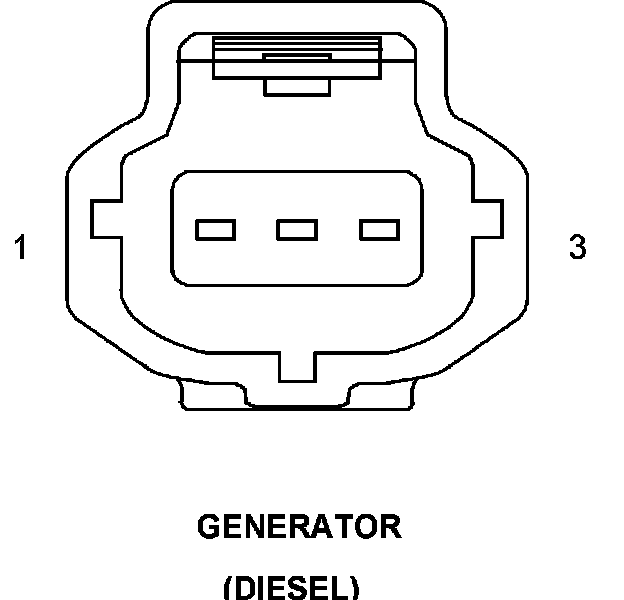

Connector:
Name : GENERATOR
Color :
# of pins : 3
Qualifier : (DIESEL)
Pin Circuit Description
1 - -
2 D509 20WT/OR ECM LIN BUS
3 - -

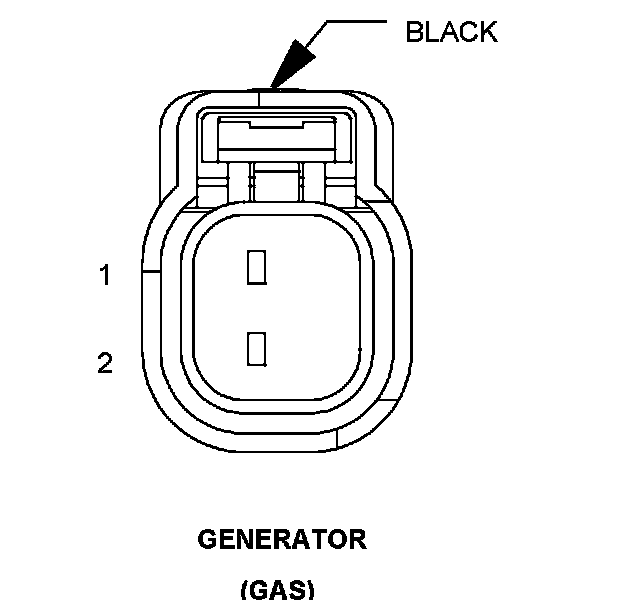

Connector:
Name : GENERATOR
Color : BLACK
# of pins : 2
Qualifier : (GAS)
Pin Circuit Description
1 K125 18BR/GY GEN FIELD CONTROL
2 A804 16RD/GY GEN SENSE

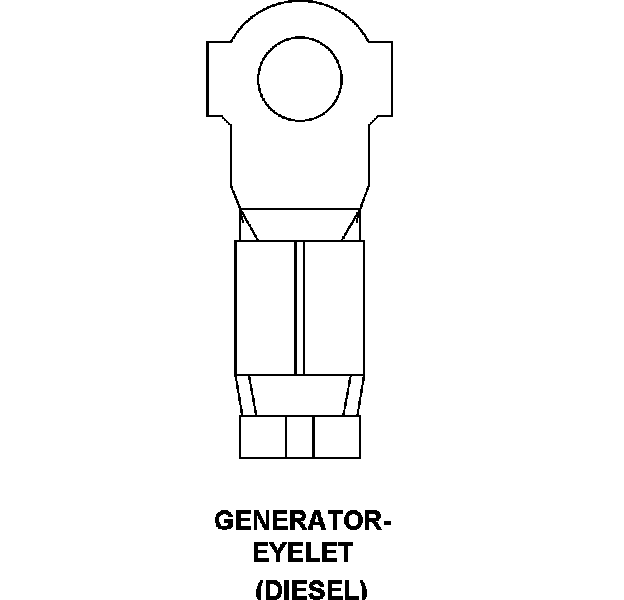

Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (DIESEL)
Pin Circuit Description
1 A801 4RD/GY FUSED B(+)

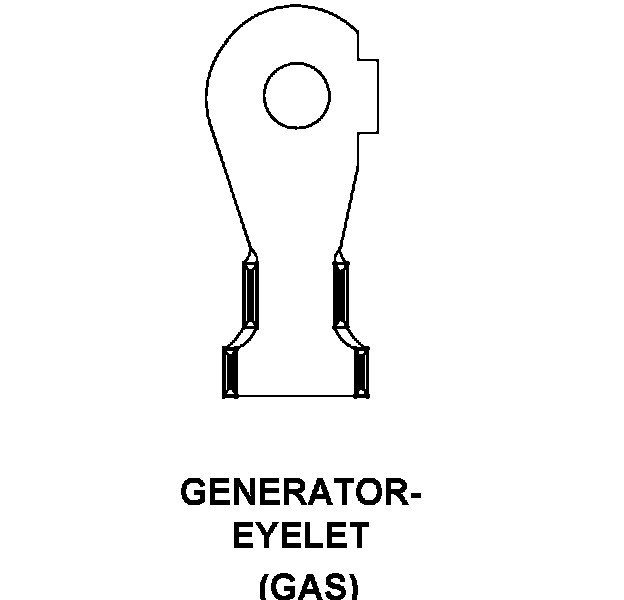

Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Qualifier : (GAS)
Pin Circuit Description
1 A801 6RD/GY FUSED B(+)
