2008 Jeep Wrangler 4WD V6-3.8LFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position Sensor
Component ID: 273
Component : SENSOR-ACCELERATOR PEDAL POSITION

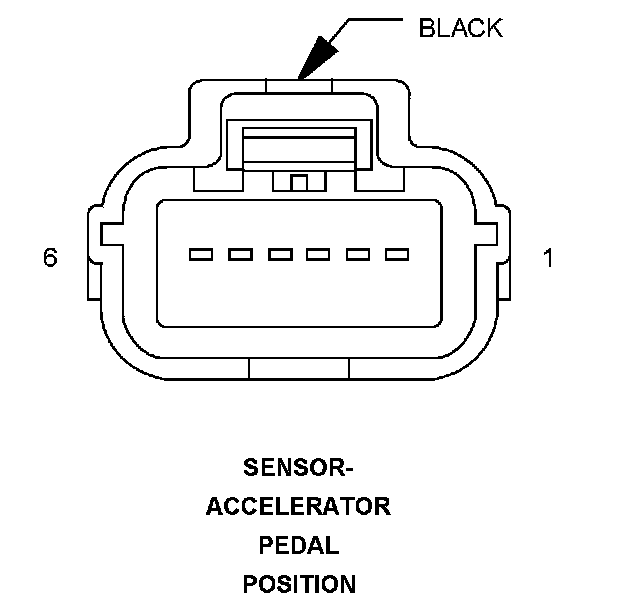

Connector:
Name : SENSOR-ACCELERATOR PEDAL POSITION
Color : BLACK
# of pins : 6
Pin Circuit Description
1 F855 20PK/YL 5 VOLT SUPPLY
2 K23 20BR/WT APP 1 SIGNAL
3 K167 20BR/YL APP 1 SENSOR GROUND
4 K400 20BR/VT APP 2 SENSOR GROUND
5 K29 20WT/BR APP 2 SIGNAL
6 F852 20YL/PK 5 VOLT SUPPLY
6 F856 20YL/PK 5 VOLT SUPPLY
