2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE

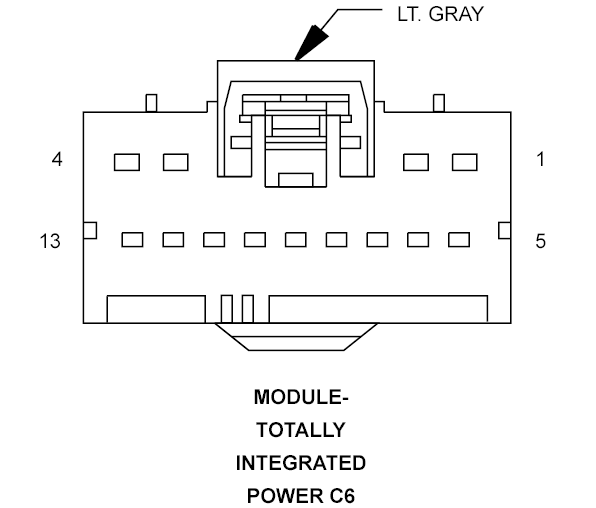

Totally Integrated Power Module Connector End View (C6)

MODULE-TOTALLY INTEGRATED POWER C6 - LT. GRAY 13 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z970 16BK	GROUND
2	-	-
3	-	-
4	-	-
5	W13 20BR/LG	REAR WIPER MOTOR CONTROL
6	-	-
7	-	-
8	-	-
9	-	-
10	-	-
11	-	-
12	L239 20WT/DG	REAR FOG LAMP CONTROL OUTPUT (EXPORT)
13	-	-
