2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE

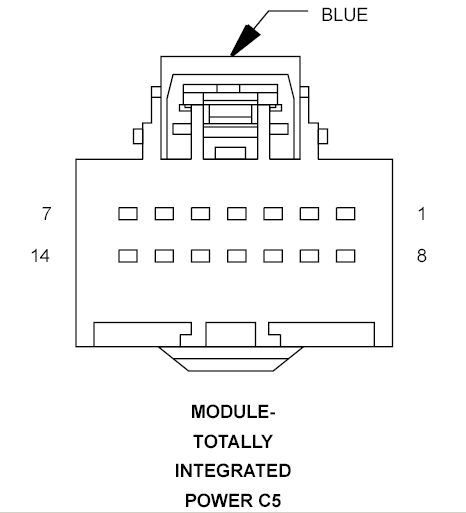

Totally Integrated Power Module Connector End View (C5)

MODULE-TOTALLY INTEGRATED POWER C5 - BLUE 14 WAY

GMK880213Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 L70 20WT/GY HEADLAMP SWITCH OUTPUT
2 L160 20WT/TN RIGHT TURN SIGNAL (OUT) (EXPORT)
3 L44 20VT/RD RIGHT LOW BEAM OUTPUT
4 L33 20WT/PK LEFT HIGH BEAM OUTPUT
5 L161 20WT/LG LEFT TURN SIGNAL (OUT) (EXPORT)
6 L7 20WT/VT HEADLAMP SWITCH OUTPUT (EXCEPT EXPORT)
6 L7 20WT/YL HEADLAMP SWITCH OUTPUT (EXPORT)
7 C818 20LB/TN A/C PRESSURE SENSOR SUPPLY
8 T22 20YL/VT BACKUP LAMP SWITCH SIGNAL
9 L131 20WT/LG HEADLAMP LEVEL SENSOR SIGNAL (EXPORT)
10 L132 20LG/WT HEADLAMP LEVEL SENSOR SIGNAL (EXPORT)
11 - -
12 C18 20LB/BR A/C PRESSURE SENSOR SIGNAL
13 C918 20BK/LB A/C PRESSURE SENSOR GROUND
14 F962 20PK/BK IGNITION SWITCH OUTPUT (START)
