2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE
Removal-Gas Engine

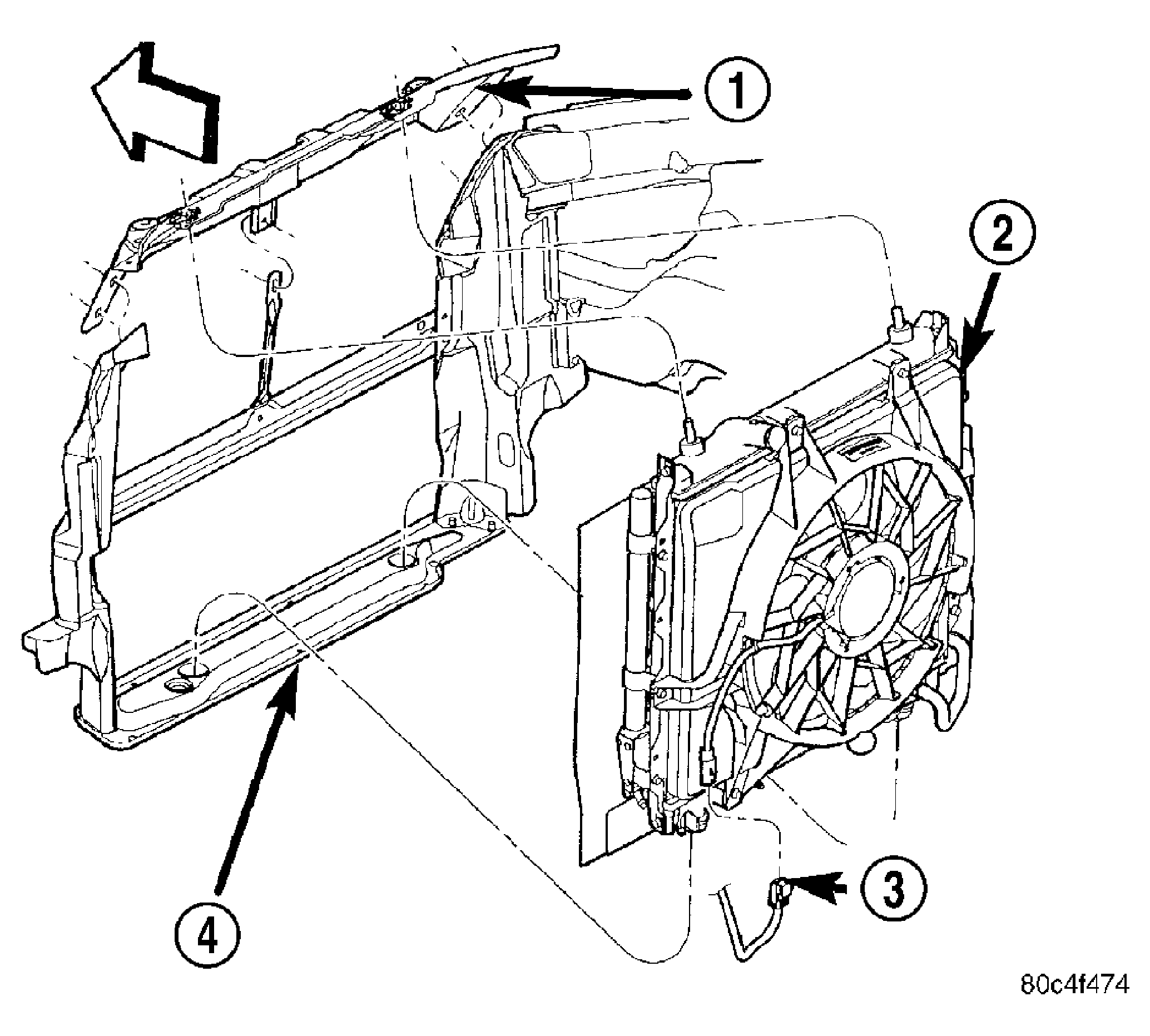

| 1 - UPPER RADIATOR CLOSURE PANEL |
| 2 - COOLING MODULE |
| 3 - RADIATOR FAN CONNECTOR |
| 4 - LOWER RADIATOR CROSSMEMBER |
WARNING:
DO NOT OPEN THE RADIATOR DRAINCOCK WITH THE SYSTEM HOT AND UNDER PRESSURE BECAUSE SERIOUS BURNS FROM COOLANT CAN OCCUR.
- Drain cooling system. See STANDARD PROCEDURE .
- Remove radiator fan. See REMOVAL .
- Disconnect lower radiator hose.
- Remove fasteners attaching AC condenser to radiator. Reposition AC condenser.
- Remove radiator assembly by lifting it up from the engine compartment. Care should be taken not to damage the cooling fins and tubes during removal.
