2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE

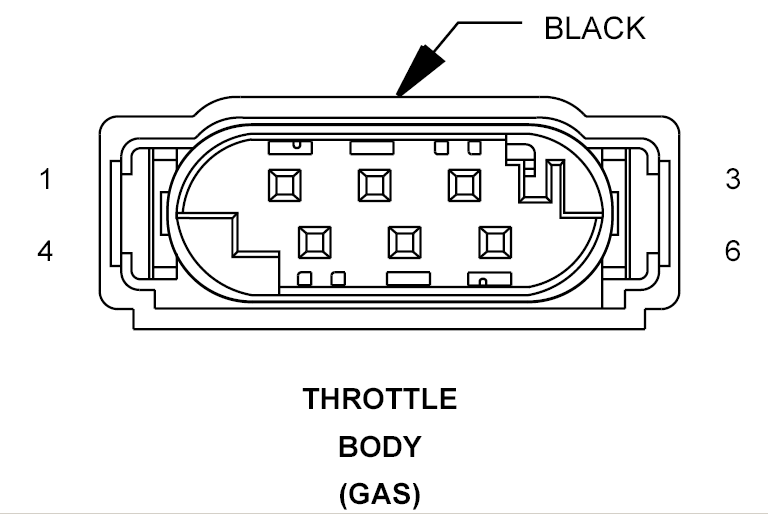

Throttle Body (Gas) Connector End View

THROTTLE BODY - BLACK 6 WAY (GAS)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K124 20DB/GY	ETC MOTOR (+)
2	K922 20BR	TP SENSOR GROUND
3	F855 20PK/YL	5 VOLT SUPPLY
4	K126 20DB/LG	ETC MOTOR (-)
5	K22 20BR/OR	TP SIGNAL 1
6	K122 20DG/BR	TP SIGNAL 2
