2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE

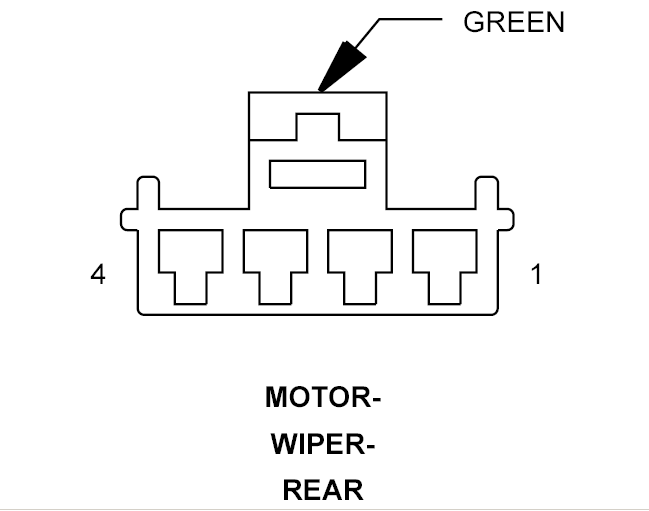

Rear Wiper Motor Connector End View

MOTOR-WIPER-REAR - GREEN 4 WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	F996 20PK/YL	FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
3	Z960 16BK/LB	GROUND
4	W13 20BR/LG	REAR WIPER MOTOR CONTROL
