2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE

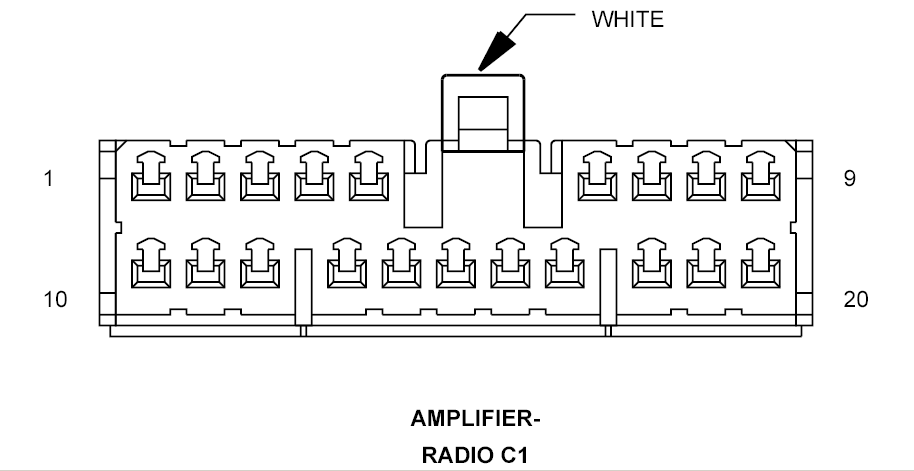

Radio Amplifier Connector End View (C1)
AMPLIFIER-RADIO C1 - WHITE 20 WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | X209 18GY/TN | LEFT INSTRUMENT PANEL SPEAKER (+) |
| 2 | X208 18GY/DG | RIGHT INSTRUMENT PANEL SPEAKER (+) |
| 3 | - | - |
| 4 | A419 18RD/DG | FUSED B(+) (I.O.D.) |
| 5 | - | - |
| 6 | D55 20WT/OR | CAN B BUS (+) |
| 7 | X51 18DG/DB | LEFT REAR SPEAKER (+) |
| 8 | X52 18GY/DB | RIGHT REAR SPEAKER (+) |
| 9 | Z960 16BK/LB | GROUND |
| 10 | X299 18GY/BR | LEFT INSTRUMENT PANEL SPEAKER (-) |
| 11 | X298 18GY/LG | RIGHT INSTRUMENT PANEL SPEAKER (-) |
| 12 | - | - |
| 13 | A420 18WT/RD | FUSED B(+) (I.O.D.) |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | D54 20WT/PK | CAN B BUS (-) |
| 18 | X57 18DG/BR | LEFT REAR SPEAKER (-) |
| 19 | X58 18GY/OR | RIGHT REAR SPEAKER (-) |
| 20 | Z960 16BK/LB | GROUND |
