2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE

Inline Connector End View (C312 )

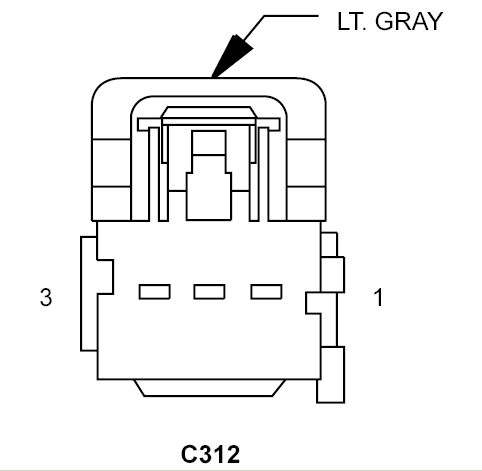

C312 - LT. GRAY 3 WAY FEMALE

GMK880084Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 X16 20DG/YL AUDIO SIGNAL RIGHT (+)
2 X17 20DG/OR AUDIO SIGNAL LEFT (+)
3 X917 20DG AUDIO SIGNAL COMMON

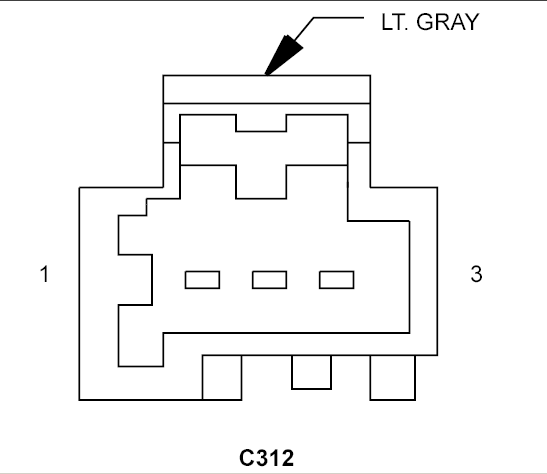

C312 - LT. GRAY 3 WAY MALE

GMK880083Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 X16 22DG/YL AUDIO SIGNAL RIGHT (+)
2 X17 22DG/OR AUDIO SIGNAL LEFT (+)
3 X917 22DG AUDIO SIGNAL COMMON
