2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE

Inline Connector End View (C103 )

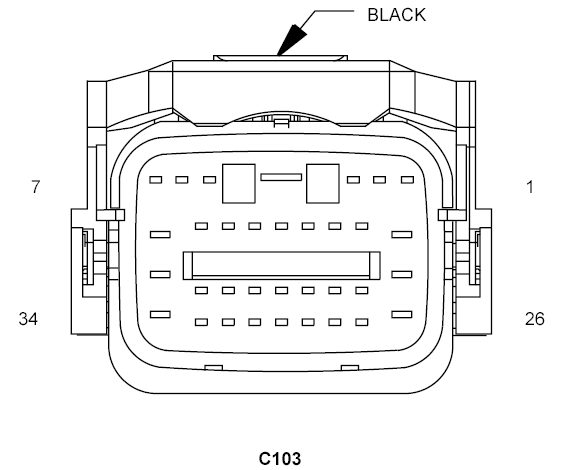

C103 - BLACK 34 WAY FEMALE

GMK880036Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 - -
3 B15 20DG/WT BRAKE SIGNAL 1
4 K542 12BR/WT MAIN RELAY OUTPUT
5 B2 20DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
6 B1 20YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
7 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
8 - -
9 - -
10 N1 18DB/OR FUEL PUMP CONTROL OUTPUT (DIESEL)
10 K107 20VT/WT ESM SIGNAL (GAS)
11 - -
12 - -
13 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
14 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
15 R81 20DG/YL LEFT FRONT IMPACT SENSOR GROUND
16 - -
17 Z970 16BK GROUND
18 V71 20VT/OR S/C SIGNAL 1
19 V72 20OR/VT S/C SIGNAL 2
20 V937 20VT/LG S/C SWITCH GROUND
21 R82 20WT/OR RIGHT FRONT IMPACT SENSOR GROUND
22 F963 20PK/DB START ENABLE
23 F962 20PK/BK IGNITION SWITCH OUTPUT (START)
24 A414 20RD/DG FUSED B(+) (I.O.D.) (EXPORT)
25 B16 20LB/DG BRAKE SIGNAL 2
26 L161 20WT/LG LEFT TURN SIGNAL (OUT)
27 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
28 D465 20WT/DB DYNAMICS SENSOR HIGH DATA LINK
29 D464 20WT/YL DYNAMICS SENSOR LOW DATA LINK
30 D64 20WT/LB CAN C BUS (-)
31 D65 20WT/BK CAN C BUS (+)
32 - -
33 - -
34 - -

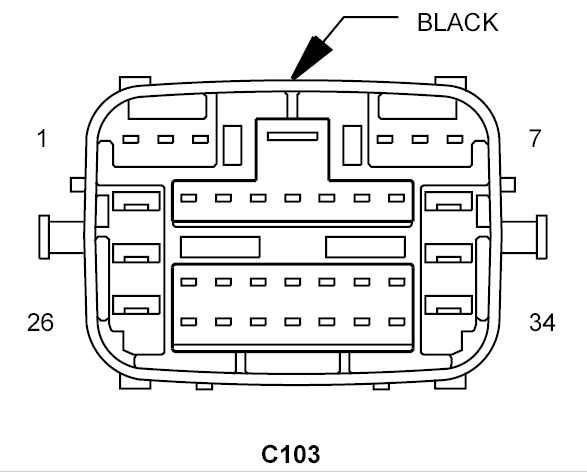

C103 - BLACK 34 WAY MALE

GMK880035Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 - -
2 - -
3 B15 20DG/WT BRAKE SIGNAL 1 (BASE)
3 B15 20DG BRAKE SIGNAL 1 (EXCEPT BASE)
4 K542 12BR/WT MAIN RELAY OUTPUT
5 B2 20DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
6 B1 20YL/DB RIGHT REAR WHEEL SPEED SENSOR SIGNAL
7 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
8 B1 20YL/DB RIGHT REAR WHEEL SPEED SENSOR (-)
9 K51 20BR/WT MAIN RELAY CONTROL
10 K107 20VT/LB ESM SIGNAL
10 N1 18DB/OR FUEL PUMP CONTROL OUTPUT (DIESEL)
11 B2 20DG/LB RIGHT REAR WHEEL SPEED SENSOR (+)
12 - -
13 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL
14 R80 20VT/LB RIGHT FRONT IMPACT SENSOR SIGNAL
15 R81 20DG/YL LEFT FRONT IMPACT SENSOR GROUND
16 - -
17 Z970 16BK GROUND
18 V71 20VT/OR S/C SIGNAL 1
19 V72 20OR/VT S/C SIGNAL 2
20 V937 20VT/LG S/C SWITCH GROUND
21 R82 20WT/OR RIGHT FRONT IMPACT SENSOR GROUND
22 F963 20PK/DB START ENABLE (CVT)
22 F964 20PK/LB FUSED IGNITION SWITCH OUTPUT (START) (NOT USED)
23 F962 20PK/BK IGNITION SWITCH OUTPUT (START) (CVT)
23 F964 20PK/LB IGNITION SWITCH OUTPUT (START) (NOT USED)
24 A414 20RD/DG FUSED B(+) (I.O.D.)
25 B16 20LB/DG BRAKE SIGNAL 2
26 L161 20WT/LG LEFT TURN SIGNAL (OUT)
27 F20 20PK/WT IGNITION SWITCH OUTPUT (RUN-START)
28 D465 20WT/DB DYNAMICS SENSOR HIGH DATA LINK
29 D464 20WT/YL DYNAMICS SENSOR LOW DATA LINK
30 D64 20WT/LB CAN C BUS (-)
31 D65 20WT/BK CAN C BUS (+)
32 - -
33 - -
34 - -
