2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE
Inline (Diesel) Connector End View (C102)

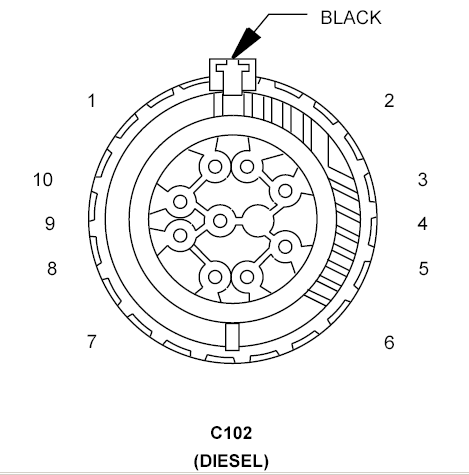

C102 - BLACK 10 WAY (DIESEL) FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | K613 16BR/WT | FUEL INJECTOR 3 LOW-SIDE CONTROL |
| 2 | K612 16BR/LG | FUEL INJECTOR 2 LOW-SIDE CONTROL |
| 3 | A203 16BK/DB | GLOW PLUG 2 CONTROL |
| 4 | - | - |
| 5 | A202 16BK/RD | GLOW PLUG 1 CONTROL |
| 6 | K614 16BR/LB | FUEL INJECTOR 4 LOW-SIDE CONTROL |
| 7 | K611 16BR/RD | FUEL INJECTOR 1 LOW-SIDE CONTROL |
| 8 | A204 16BK/DG | GLOW PLUG 3 CONTROL |
| 9 | K663 14BR/YL | FUEL INJECTOR HIGH-SIDE COMMON |
| 10 | A208 16BK/GY | GLOW PLUG 4 CONTROL |

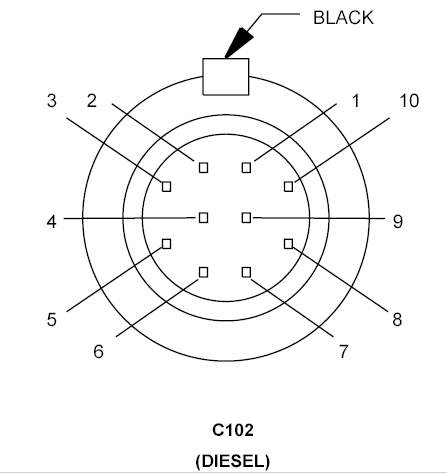

C102 - BLACK 10 WAY (DIESEL) MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | K613 14GY/BR | FUEL INJECTOR 3 LOW-SIDE CONTROL |
| 2 | K612 14YL/BR | FUEL INJECTOR 2 LOW-SIDE CONTROL |
| 3 | A203 14RD/BR | GLOW PLUG 2 CONTROL |
| 4 | - | - |
| 5 | A202 14RD/WT | GLOW PLUG 1 CONTROL |
| 6 | K614 14WT/BR | FUEL INJECTOR 4 LOW-SIDE CONTROL |
| 7 | K611 14OR/BR | FUEL INJECTOR 1 LOW-SIDE CONTROL |
| 8 | A204 14RD/YL | GLOW PLUG 3 CONTROL |
| 9 | K663 14BR/GY | FUEL INJECTOR HIGH-SIDE COMMON |
| 10 | A208 14RD/OR | GLOW PLUG 4 CONTROL |
