2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE

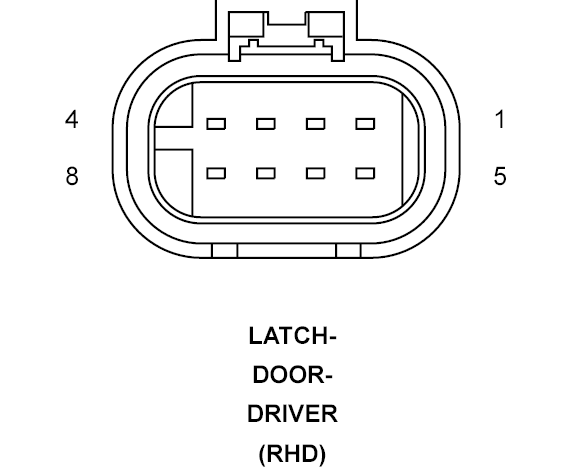

Driver Door Latch (RHD) Connector End View

LATCH-DOOR-DRIVER - 8 WAY (RHD)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	-	-
2	-	-
3	P237 20DG/TN	SECONDARY UNLOCK DRIVER
4	P235 20LG/TN	SECONDARY LOCK DRIVER
5	P238 20TN/RD	DRIVER DOOR UNLOCK DRIVER
6	P33 20TN/DB	DOOR LOCK DRIVER
7	G74 20VT/WT	RIGHT FRONT DOOR AJAR SWITCH SENSE
8	Z928 20BK/LG	GROUND
