2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE

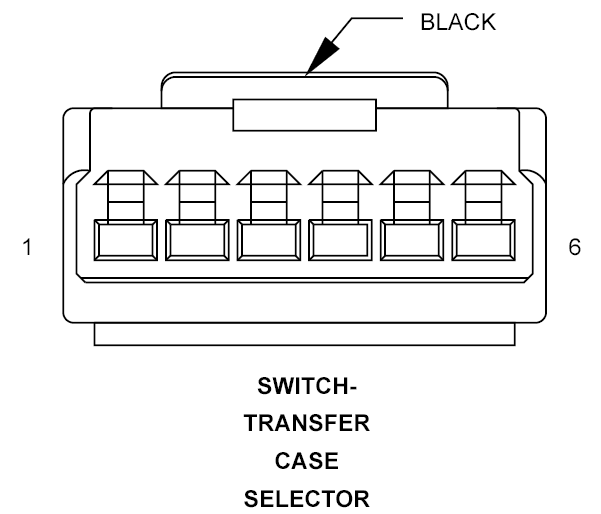

Transfer Case Selector Switch Connector End View

SWITCH-TRANSFER CASE SELECTOR - BLACK 6 WAY FEMALE

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	Z940 20BK/LG	GROUND
2	K77 20BR/WT	TRANSFER CASE POSITION SENSOR INPUT
3	-	-
4	-	-
5	E12 20OR/GY	PANEL LAMPS DRIVER
6	Z940 20BK/LG	GROUND
