2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE
Inline (SAB) Connector End View (C305)

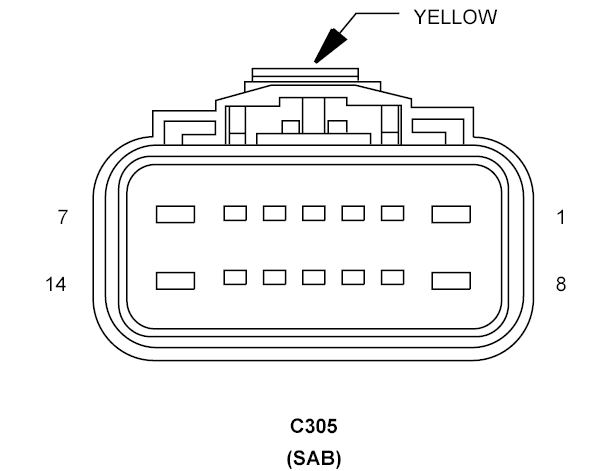

C305 - 14 WAY (SAB) FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | P188 20LG/VT | SEAT HEATER B(+) DRIVER (HEATED SEATS) |
| 2 | R5 18LB/VT | LEFT SEAT SQUIB 1 LINE 2 |
| 3 | R7 18LG/GY | LEFT SEAT SQUIB 1 LINE 1 |
| 4 | R261 20LB/TN | DRIVER SEAT POSITION SENSOR DATA |
| 5 | R263 20LB/BK | DRIVER SEAT POSITION SENSOR VOLTAGE |
| 6 | D506 20WT/DG | LIN BUS |
| 7 | Z960 18BK/LB | GROUND |
| 8 | F937 18PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN) |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |

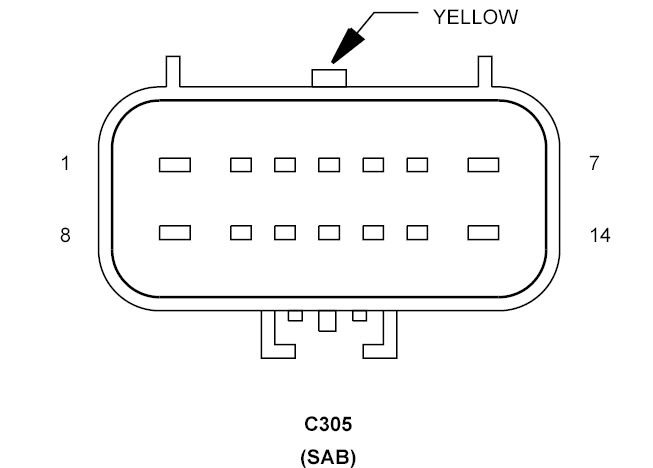

C305 - YELLOW 14 WAY (SAB) MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | P188 20LG/VT | SEAT HEATER B(+) DRIVER (HEATED SEATS) |
| 2 | R5 18LB/VT | LEFT SEAT SQUIB 1 LINE 2 |
| 3 | R7 18LG/GY | LEFT SEAT SQUIB 1 LINE 1 |
| 4 | R261 20LB/TN | DRIVER SEAT POSITION SENSOR DATA |
| 5 | R263 20LB/BK | DRIVER SEAT POSITION SENSOR VOLTAGE |
| 6 | D506 20WT/DG | LIN BUS (HEATED SEATS) |
| 7 | Z960 18BK/LB | GROUND |
| 8 | F937 18PK/YL | FUSED IGNITION SWITCH OUTPUT (RUN) (HEATED SEATS) |
| 9 | - | - |
| 10 | - | - |
| 11 | - | - |
| 12 | - | - |
| 13 | - | - |
| 14 | - | - |
