2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE
Inline (RHD) Connector End View (C301)

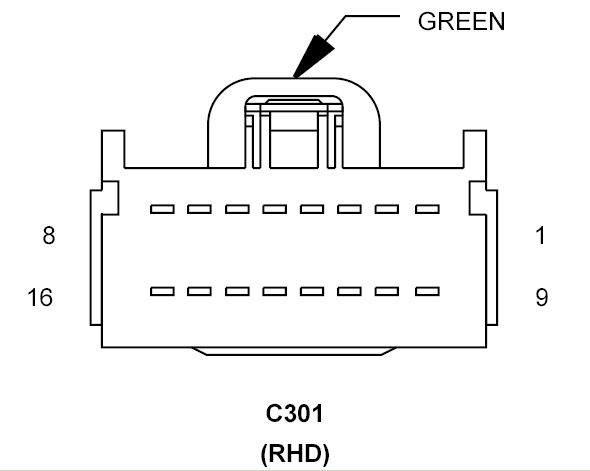

C301 - GREEN 16 WAY (RHD) FEMALE
| CAV | CIRCUIT | FUNCTION |
| 1 | G75 20VT/DB | LEFT FRONT DOOR AJAR SWITCH SENSE |
| 2 | P33 20TN/DB | DOOR LOCK DRIVER |
| 3 | P240 20TN/WT | PASSENGER DOOR UNLOCK DRIVER |
| 4 | P110 20LG/WT | FOLDING MIRROR RETURN |
| 5 | P699 20LG/DG | MIRROR-POWER FOLDING/UNFOLDING |
| 6 | P71 20TN/LG | LEFT MIRROR VERTICAL DRIVER |
| 7 | P75 20TN/BK | LEFT MIRROR HORIZONTAL DRIVER |
| 8 | - | - |
| 9 | P76 20YL/PK | MIRROR COMMON DRIVER |
| 10 | X201 18GY/VT | LEFT FRONT DOOR SPEAKER (+) (BASE) |
| 10 | X153 18DG/VT | AMPLIFIED LEFT FRONT DOOR SPEAKER (+) (PREMIUM) |
| 11 | X291 18GY/YL | LEFT FRONT DOOR SPEAKER (-) (BASE) |
| 11 | X155 18DG/BK | AMPLIFIED LEFT FRONT DOOR SPEAKER (-) (PREMIUM) |
| 12 | - | - |
| 13 | C16 20DB/GY | FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT |
| 13 | C16 20DB/GY | FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT |
| 14 | - | - |
| 15 | P235 20LG/TN | SECONDARY LOCK DRIVER |
| 16 | P237 20DG/TN | SECONDARY UNLOCK DRIVER |

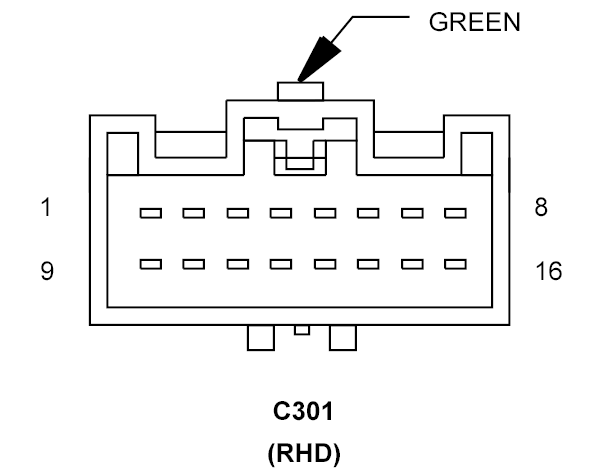

C301 - GREEN 16 WAY (RHD) MALE
| CAV | CIRCUIT | FUNCTION |
| 1 | G75 20VT/DB | LEFT FRONT DOOR AJAR SWITCH SENSE |
| 2 | P33 20TN/DB | DOOR LOCK DRIVER |
| 3 | P240 20TN/WT | PASSENGER DOOR UNLOCK DRIVER |
| 4 | P110 20LG/WT | FOLDING MIRROR RETURN |
| 5 | P699 20LG/DG | MIRROR-POWER FOLDING/UNFOLDING |
| 6 | P71 20TN/DG | LEFT MIRROR VERTICAL DRIVER |
| 7 | P75 20TN/OR | LEFT MIRROR HORIZONTAL DRIVER |
| 8 | - | - |
| 9 | P76 20YL/PK | MIRROR COMMON DRIVER |
| 10 | X201 18GY/VT | LEFT FRONT DOOR SPEAKER (+) (BASE) |
| 10 | X201 18GY/VT | AMPLIFIED LEFT FRONT DOOR SPEAKER (+) (PREMIUM) |
| 11 | X291 18GY/YL | LEFT FRONT DOOR SPEAKER (-) (BASE) |
| 11 | X291 18GY/YL | AMPLIFIED LEFT FRONT DOOR SPEAKER (-) (PREMIUM) |
| 12 | - | - |
| 13 | C16 20DB/GY | FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT |
| 14 | - | - |
| 15 | P235 20LG/TN | SECONDARY LOCK DRIVER |
| 16 | P237 20DG/TN | SECONDARY UNLOCK DRIVER |
