2008 Jeep Compass Limited, AWD, StandardFACTORY OEM SERVICE PROCEDURE
Input Flange Seal
- Raise the vehicle on a hoist.
- Remove the propeller shaft. See REMOVAL .
- Unplug the electrical connector (3) at the ECC.
- Disconnect ECC breather hose.
- Remove the ECC to RDA mounting bolts.
- Separate and lower ECC.
- Remove all old gasket material on the mating surfaces of the ECC and RDA.
- Remove wave washer.

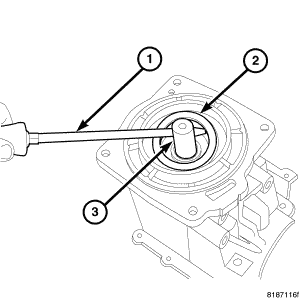

- Remove the input flange seal.
