2008 Jeep Compass 4WD L4-2.0LFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position Sensor: Locations
Component ID: 144
Component : SENSOR-ACCELERATOR PEDAL POSITION

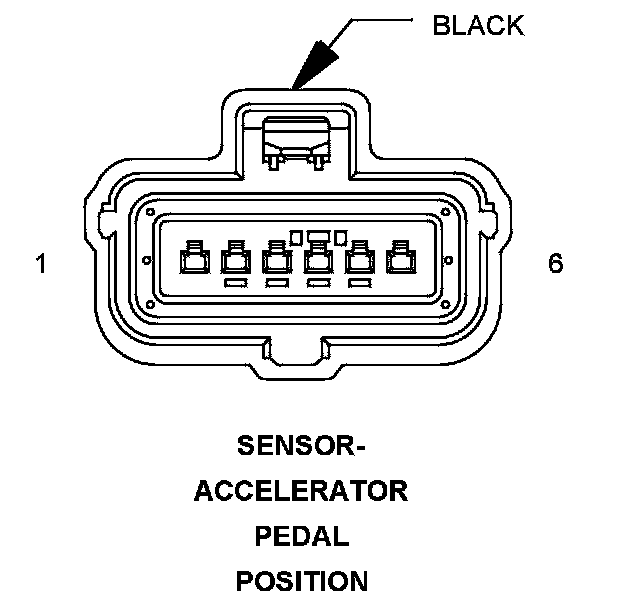

Connector:
Name : SENSOR-ACCELERATOR PEDAL POSITION
Color : BLACK
# of pins : 6
Pin Circuit Description
1 K29 20WT/BR APP SIGNAL 2
2 K400 20BR/VT APP SENSOR GROUND 2
3 K854 20VT/BR 5 VOLT SUPPLY
3 K858 20BR/GY 5 VOLT SUPPLY
4 K23 20BR/OR APP SIGNAL 1
5 K167 20BR/YL APP SENSOR GROUND 1
6 K852 20BR/VT 5 VOLT SUPPLY
6 F856 20YL/PK 5 VOLT SUPPLY

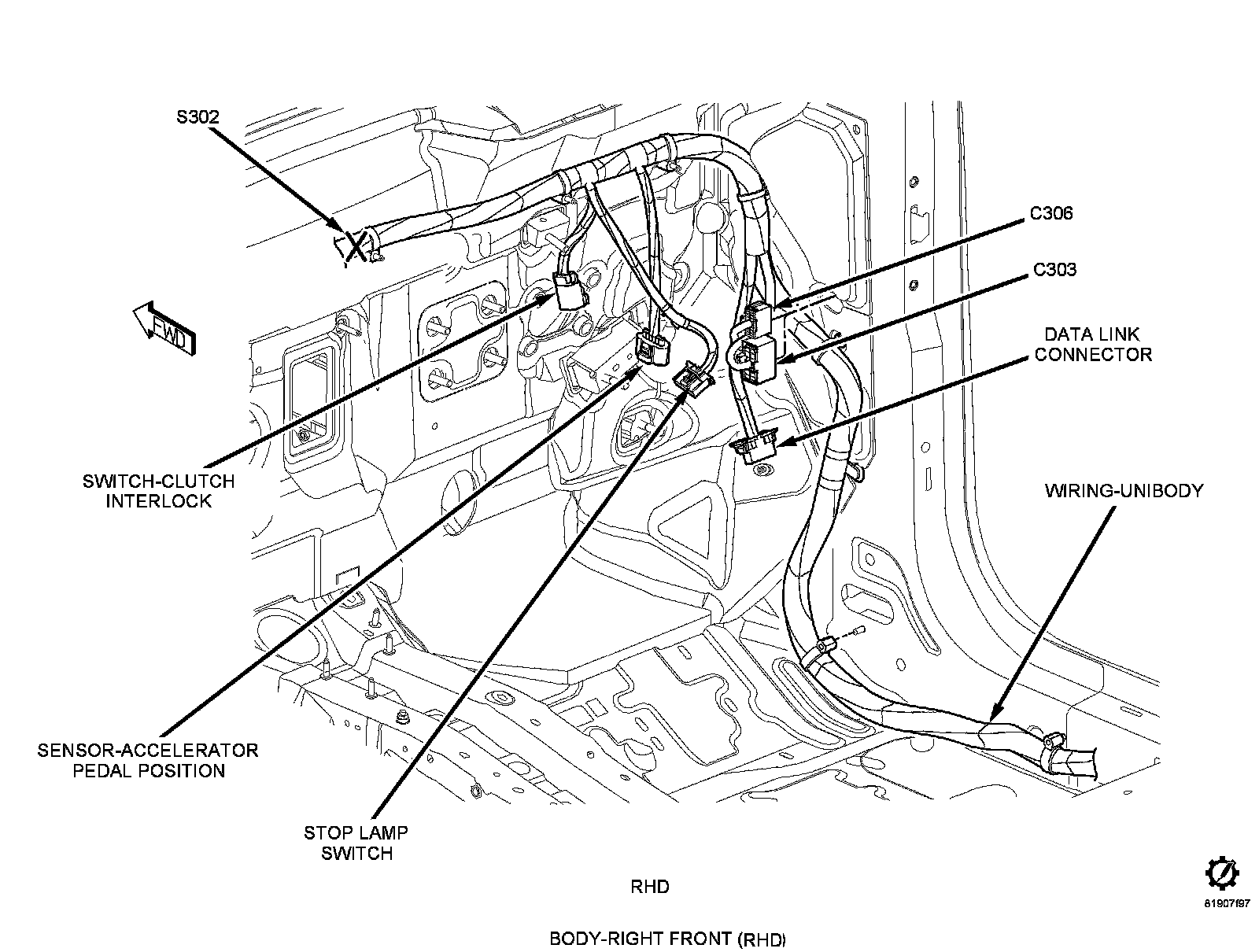

Component Location - 38
Component Location - 41
