INSTALLATION

CAUTION: Carefully install the ignition switch to the slotted detent pin. If installed forcefully the detent pin will break the ignition cylinder lock housing will have to be replaced.

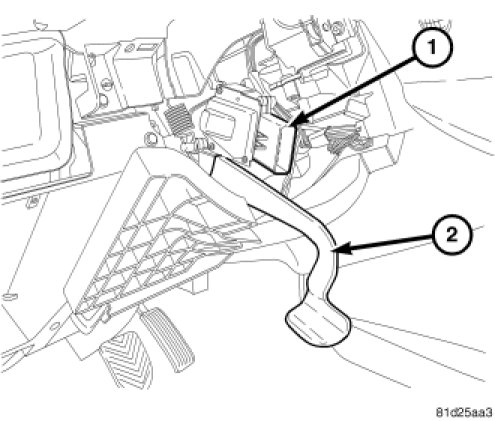

1. Pay close attention not to damage the detent pin in the lock cylinder housing when installing the ignition switch Position the ignition switch (1) as shown in order to clear the tilt lever (2).

2. Ensure the ignition module is in the RUN position and the actuator shaft in the lock housing is in the RUN position.

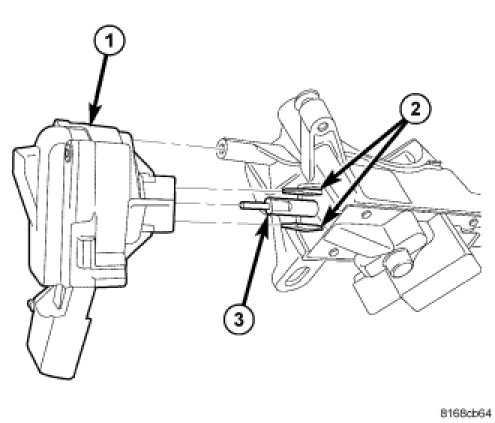

3. Align the ignition switch (1) with the detent pin (3), and retaining tabs (2) located on the lock cylinder housing. Carefully install the module, snapping it into place over the retaining tabs. Make sure the ignition switch is fully seated.

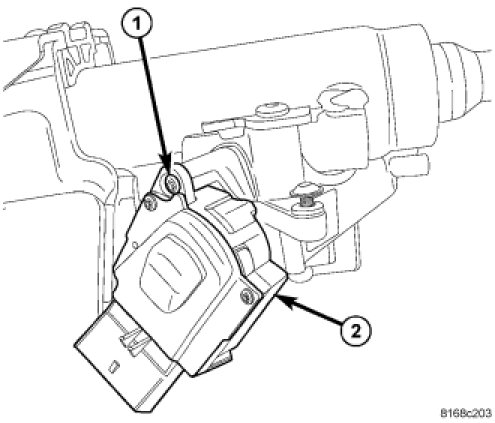

4. Install the ignition module (2) mounting screw (1). Tighten the screw to 2 Nm (18 in. lbs.).
5. Connect the ignition switch electrical connector.

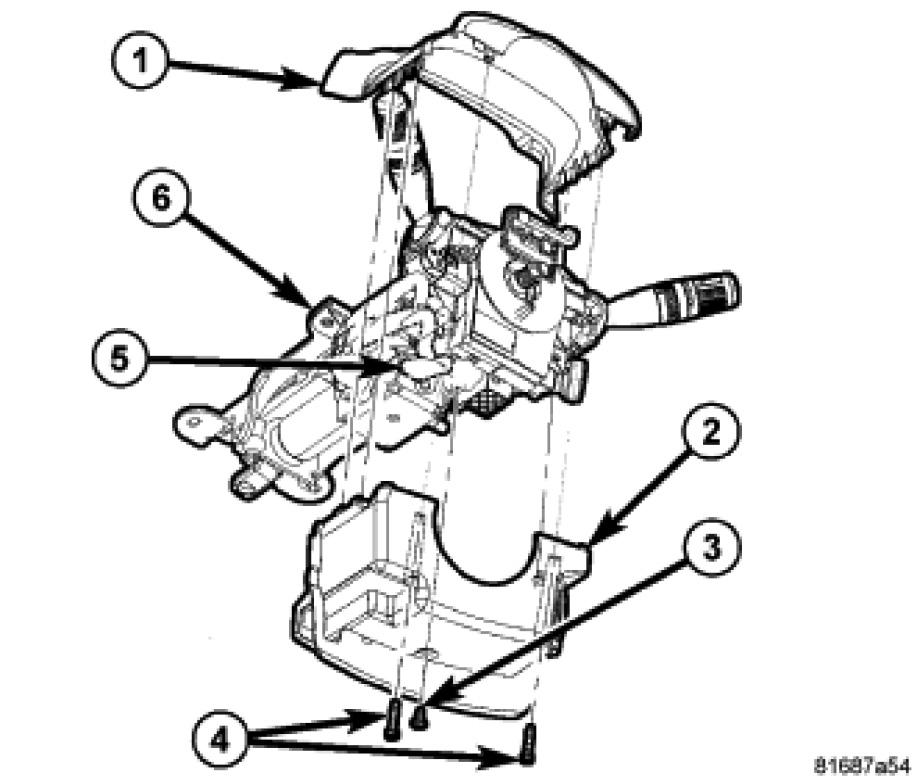

6. Install upper (1) and lower (2) steering column shrouds,Installation.

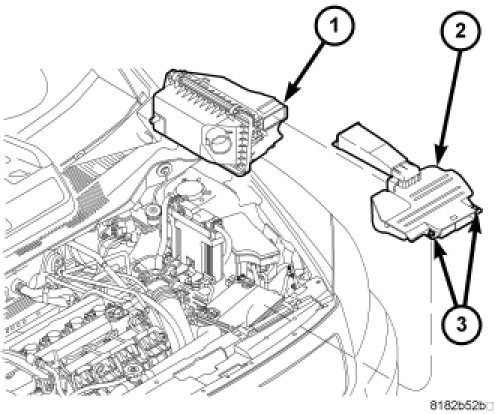

7. Install air cleaner fresh air duct (2) and disconnect and isolate negative battery cable at battery, Battery - Installation.
8. Check operation of all steering column mounted components.
