2008 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Manifold Pressure/Vacuum Sensor: Locations
Component ID: 135
Component : SENSOR-MAP

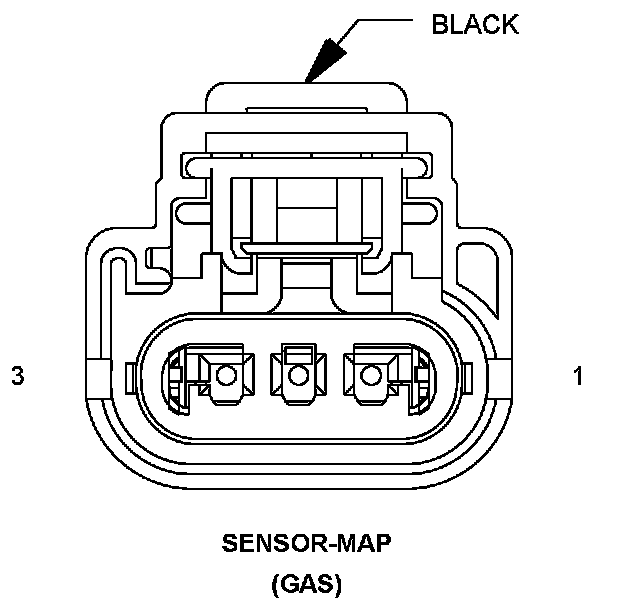

Connector:
Name : SENSOR-MAP
Color : BLACK
# of pins : 3
Qualifier : (GAS)
Pin Circuit Description
1 K1 20VT/LB MAP SIGNAL
2 K900 20DB/DG SENSOR GROUND
3 K857 20BR/LG 5 VOLT SUPPLY
Component Location - 14
