2008 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Sensor-Engine Coolant Temperature 2
Component ID: 138
Component : SENSOR-ENGINE COOLANT TEMPERATURE 2

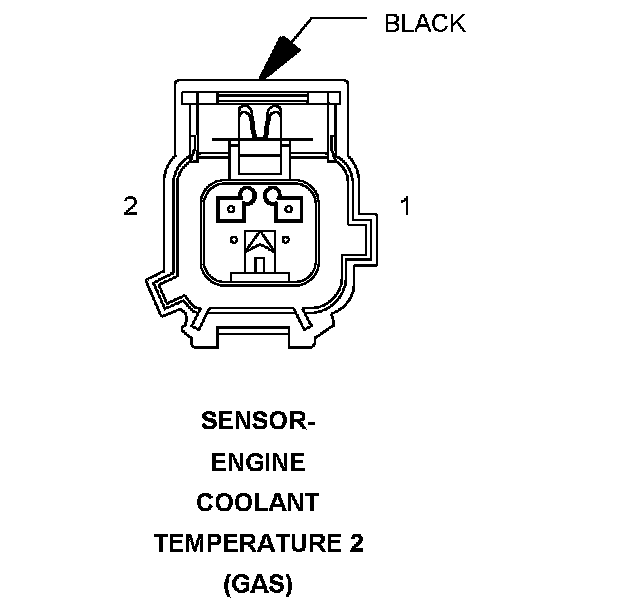

Connector:
Name : SENSOR-ENGINE COOLANT TEMPERATURE 2
Color : BLACK
# of pins : 2
Qualifier : (GAS)
Pin Circuit Description
1 K915 20BR/WT SENSOR GROUND
2 K222 20BR/YL ECT 2 SIGNAL

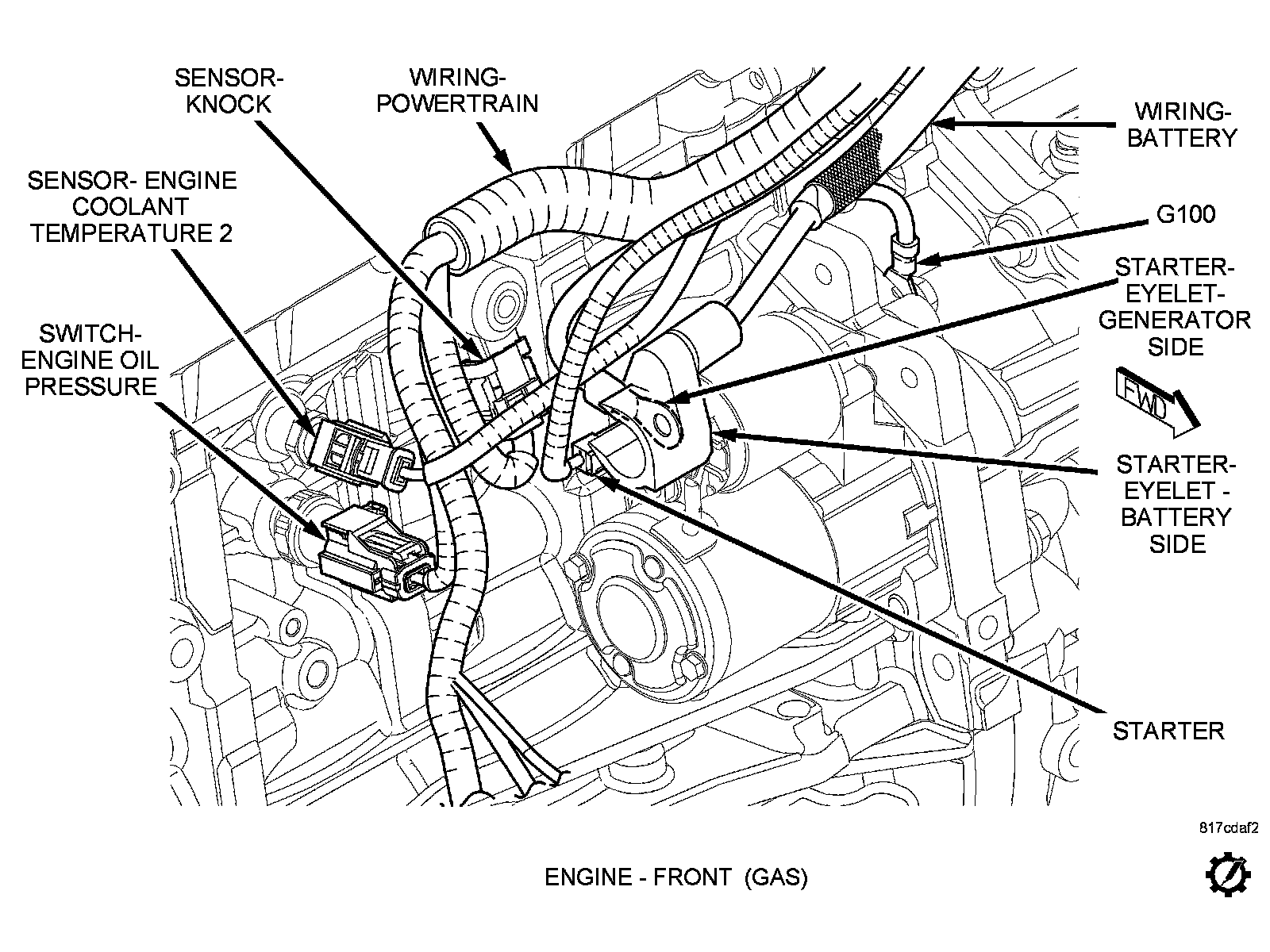

Component Location - 14
Component Location - 15
