2008 Jeep Compass 2WD L4-2.4L
Steering Angle Sensor, Traction Control
2008 Jeep Compass 2WD L4-2.4LSECTION Steering Angle Sensor, Traction Control
Component ID: 189

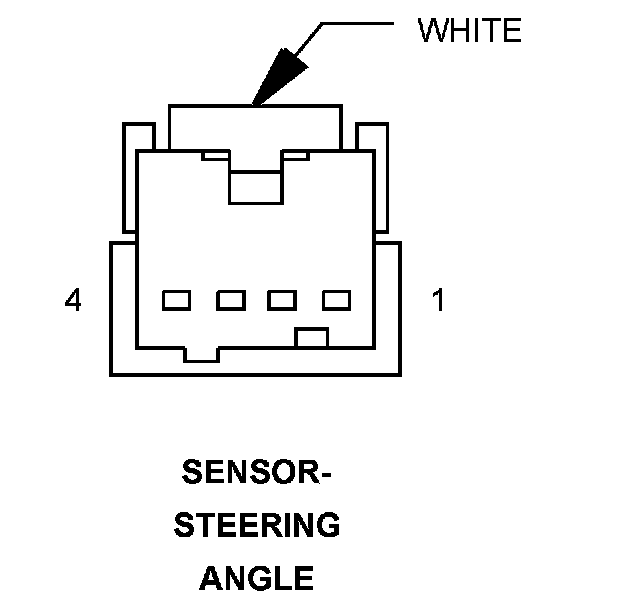

Component : SENSOR-STEERING ANGLE
Connector:
Name : SENSOR-STEERING ANGLE
Color : WHITE
# of pins : 4
Pin Circuit Description
1 D65 20WT/BK CAN C BUS (+)
2 D64 20WT/LB CAN C BUS (-)
3 Z936 20BK/LB GROUND
3 Z937 20BK/YL GROUND
4 F202 18PK/GY IGNITION SWITCH OUTPUT (RUN-START)
Component Location - 27
Component Location - 28
Component Location - 30
