2008 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Seat Temperature Control Module
Component ID: 327

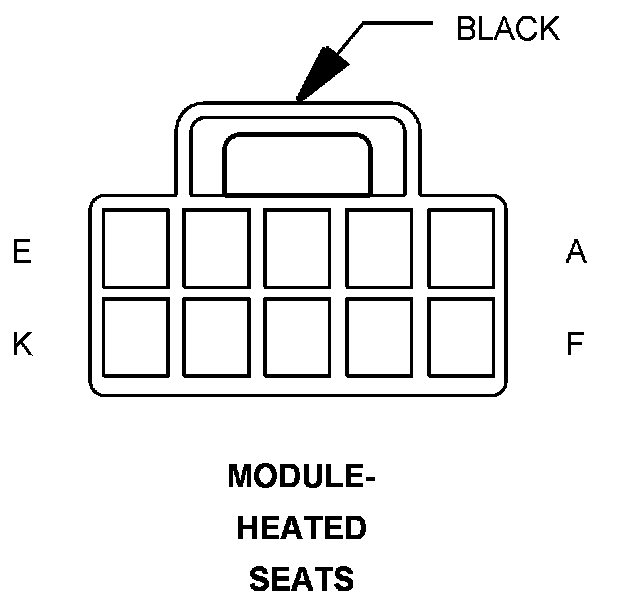

Component : MODULE-HEATED SEATS
Connector:
Name : MODULE-HEATED SEATS
Color : BLACK
# of pins : 10
A - -
B - -
C - -
D P187 20LG/BR LEFT SEAT HEATER B(+) DRIVER
E F937 18PK/YL FUSED IGNITION SWITCH OUTPUT (RUN)
F Z960 18BK/LB GROUND
G - -
H - -
J D506 20WT/DG LIN BUS
K P188 20LG/VT RIGHT SEAT HEATER B(+) DRIVER

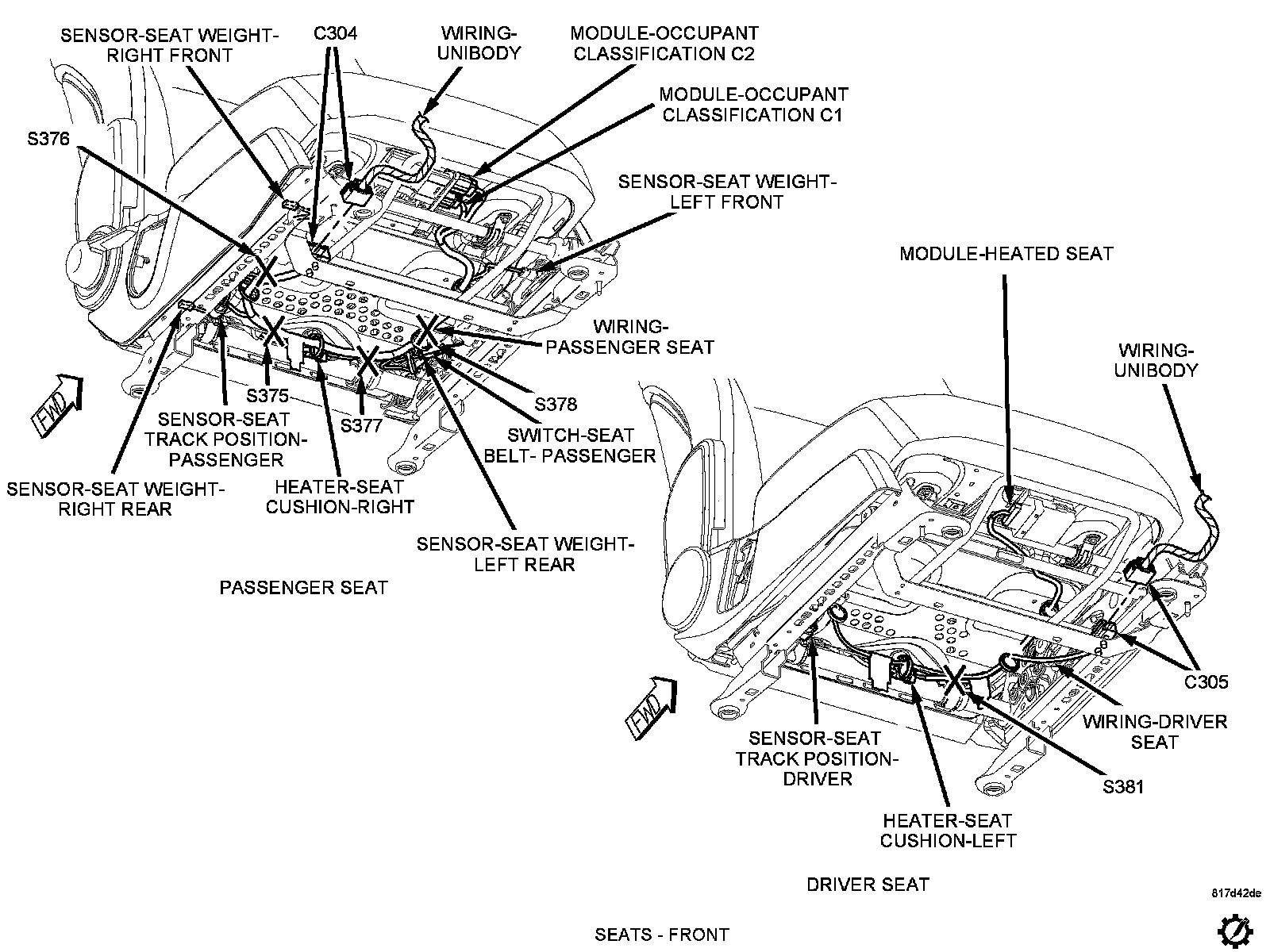

Component Location - 50
