2008 Jeep Compass 2WD L4-2.4L
Switch-Power Window-Passenger
2008 Jeep Compass 2WD L4-2.4LSECTION Switch-Power Window-Passenger

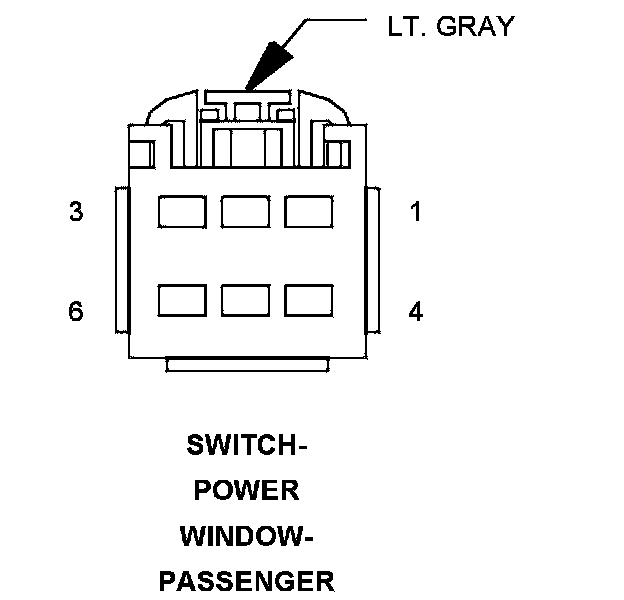

Component ID: 308
Component : SWITCH-POWER WINDOW-PASSENGER
Connector:
Name : SWITCH-POWER WINDOW-PASSENGER
Color : LT. GRAY
# of pins : 6
Pin Circuit Description
1 Q26 14OR/GY MASTER WINDOW SWITCH PASSENGER (DOWN)
2 Q22 14OR/VT RIGHT FRONT WINDOW DRIVER (DOWN)
2 Q21 14OR/WT LEFT FRONT WINDOW DRIVER (DOWN)
3 Q12 14OR/BR RIGHT FRONT WINDOW DRIVER (UP)
3 Q11 14OR/LG LEFT FRONT WINDOW DRIVER (UP)
4 Q16 14OR/TN MASTER WINDOW SWITCH PASSENGER (UP)
5 - -
6 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT
Component Location - 48
