2008 Jeep Compass 2WD L4-2.4L
Switch-Power Window-Left Rear
2008 Jeep Compass 2WD L4-2.4LSECTION Switch-Power Window-Left Rear
Component ID: 310
Component : SWITCH-POWER WINDOW-LEFT REAR

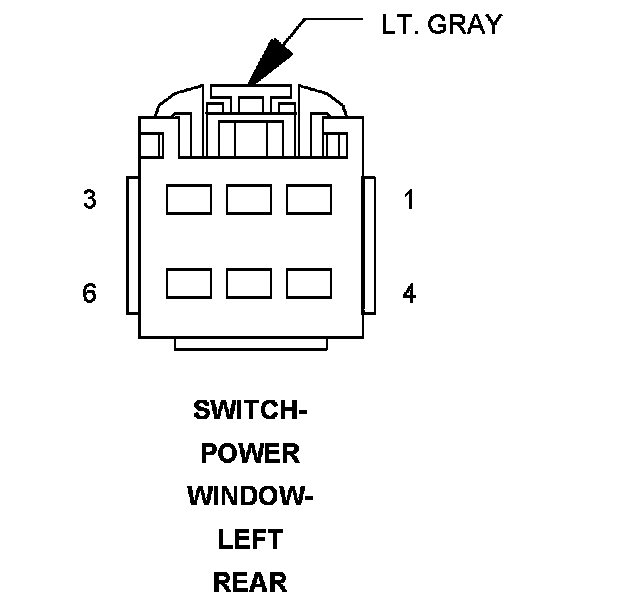

Connector:
Name : SWITCH-POWER WINDOW-LEFT REAR
Color : LT. GRAY
# of pins : 6
Pin Circuit Description
1 Q611 14OR/GY MASTER WINDOW SWITCH LEFT REAR (DOWN)
2 Q211 14TN/LB LEFT REAR WINDOW DRIVER (DOWN)
3 Q111 14TN/YL LEFT REAR WINDOW DRIVER (UP)
4 Q411 14OR/WT MASTER WINDOW SWITCH LEFT REAR (UP)
5 - -
6 Q15 14OR/RD WINDOW LOCK OUT SWITCH OUTPUT

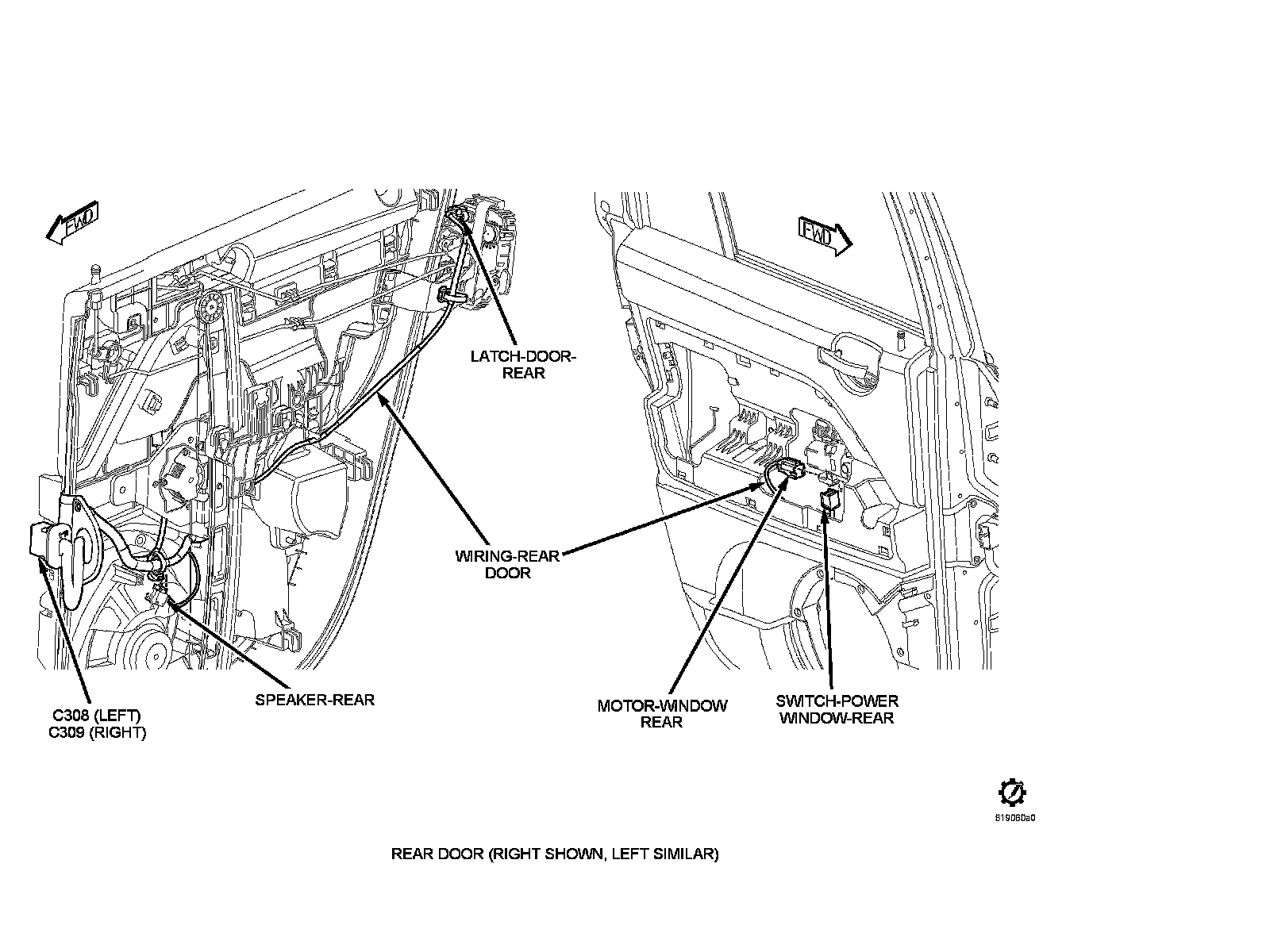

Component Location - 49
