2008 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
C10 TIPM
Component ID: 80
Component : C10 TIPM
Connector:

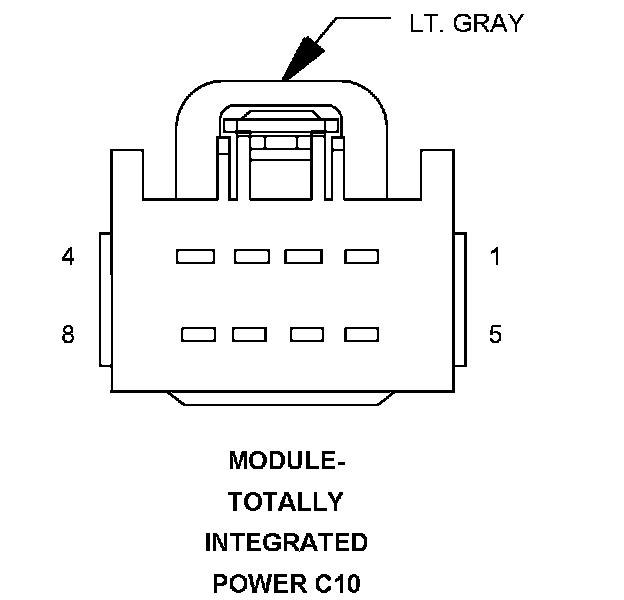

Name : MODULE-TOTALLY INTEGRATED POWER C10
Color : LT. GRAY
# of pins : 8
Pin Circuit Description
1 - -
2 - -
3 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
4 - -
5 F343 18DB/LG FUSED MAIN RELAY OUTPUT
6 F344 18DB/LB FUSED MAIN RELAY OUTPUT
7 - -
8 T750 16YL/GY STARTER CONTROL OUTPUT
Component Location - 9
Component Location - 8
