2008 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Navigation Module
Component ID: 305

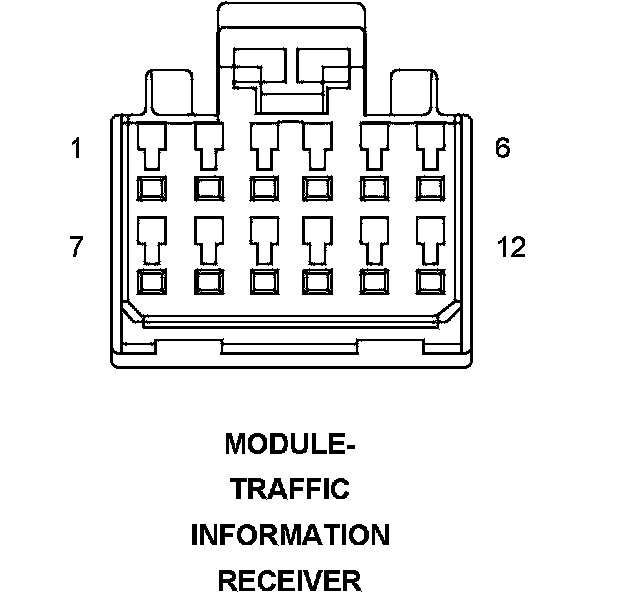

Component : MODULE-TRAFFIC INFORMATION RECEIVER
Connector:
Name : MODULE-TRAFFIC INFORMATION RECEIVER
Color :
# of pins : 12
Pin Circuit Description
1 A413 20RD/LB FUSED B(+) (I.O.D.)
2 - -
3 - -
4 - -
5 D55 20WT/OR CAN B BUS (+)
6 - -
7 - -
8 - -
9 - -
10 - -
11 D54 20WT/PK CAN B BUS (-)
12 Z909 20BK GROUND

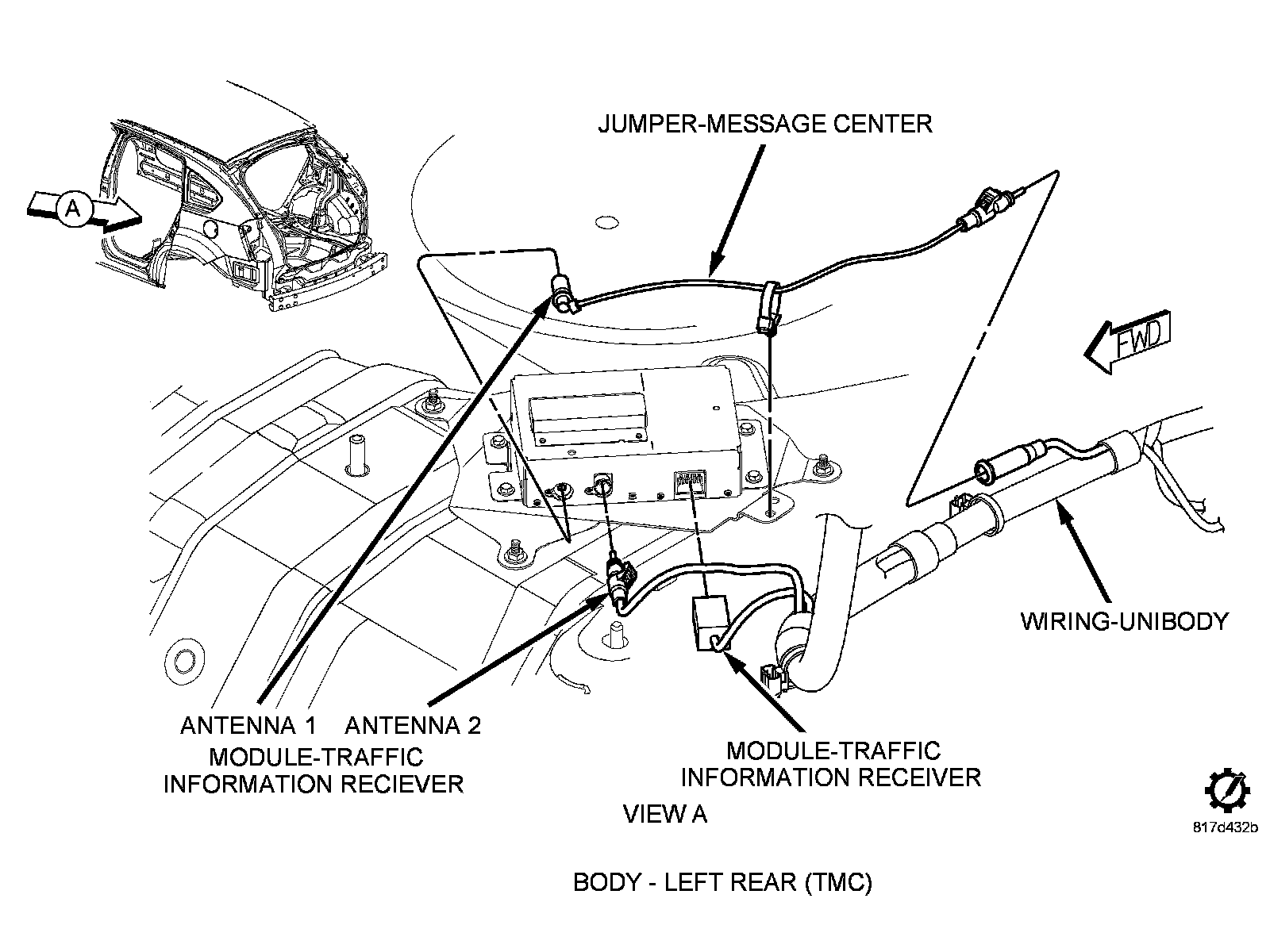

Component Location - 58
