2008 Jeep Compass 2WD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Integrated Accessory Switch Assembly
Component ID: 274
Component : SWITCH-BANK

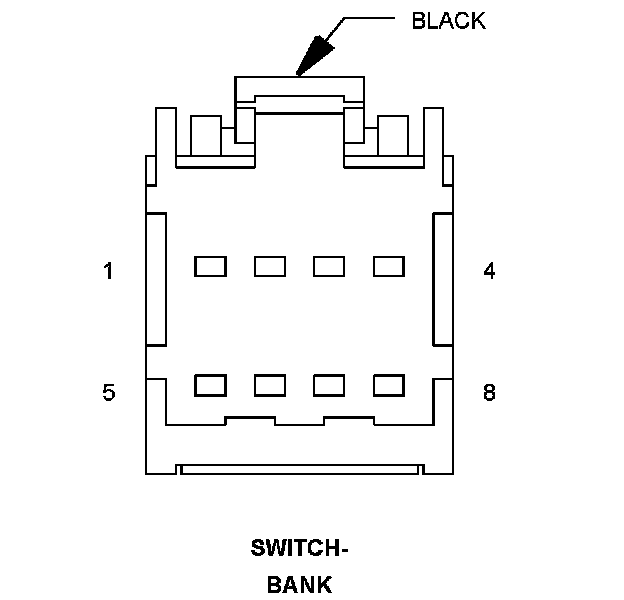

Connector:
Name : SWITCH-BANK
Color : BLACK
# of pins : 8
Pin Circuit Description
1 - -
2 - -
3 - -
4 - -
5 - -
6 A935 20RD/LB FUSED B(+)
7 Z940 20BK/LG GROUND
8 D506 20WT/DG LIN BUS

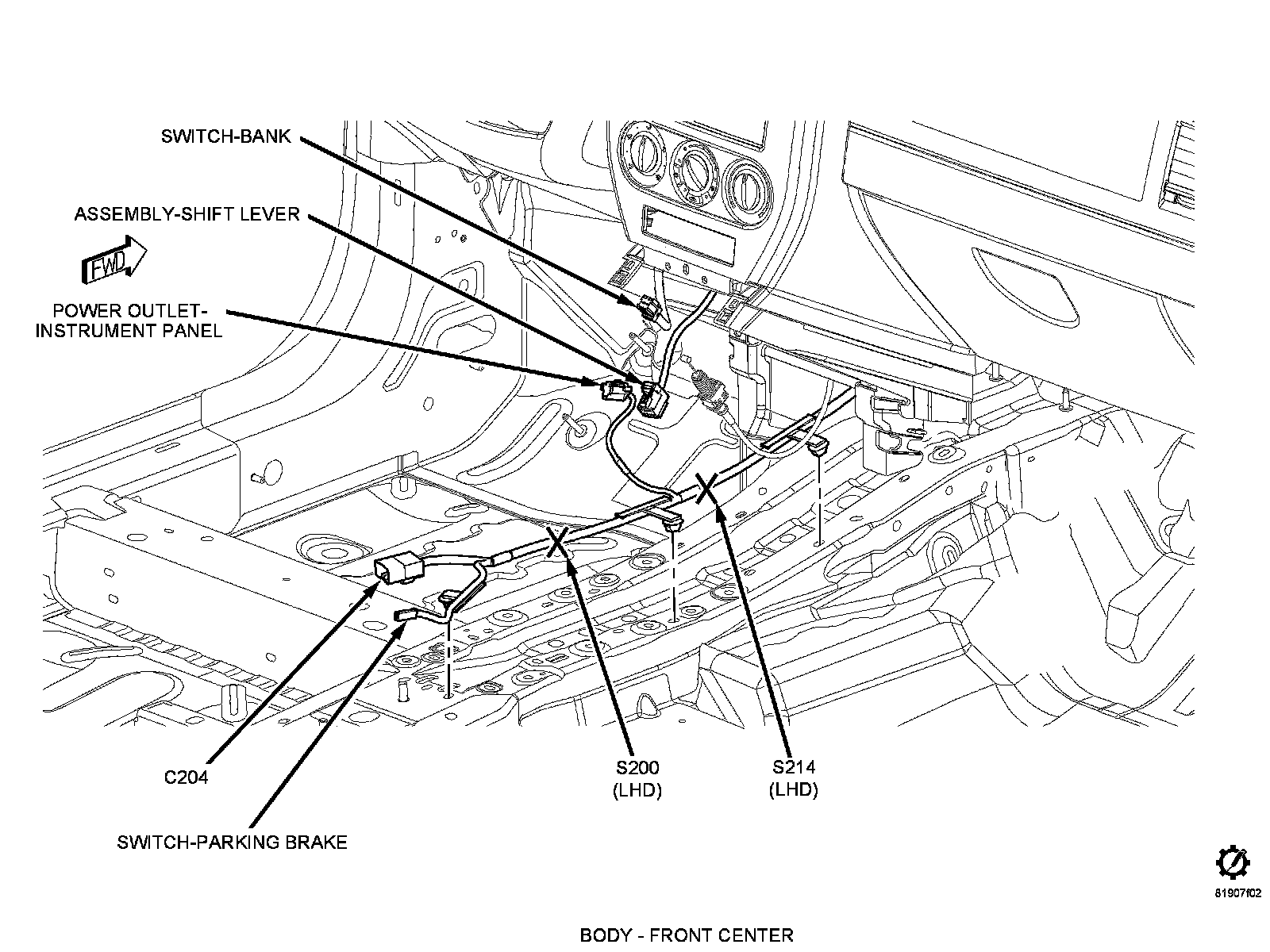

Component Location - 25
Component Location - 28
Component Location - 30
Component Location - 32
