2008 Jeep Compass 2WD L4-2.4L
Sensor-Front Impact-Left
2008 Jeep Compass 2WD L4-2.4LSECTION Sensor-Front Impact-Left
Component ID: 237
Component : SENSOR-FRONT IMPACT-LEFT

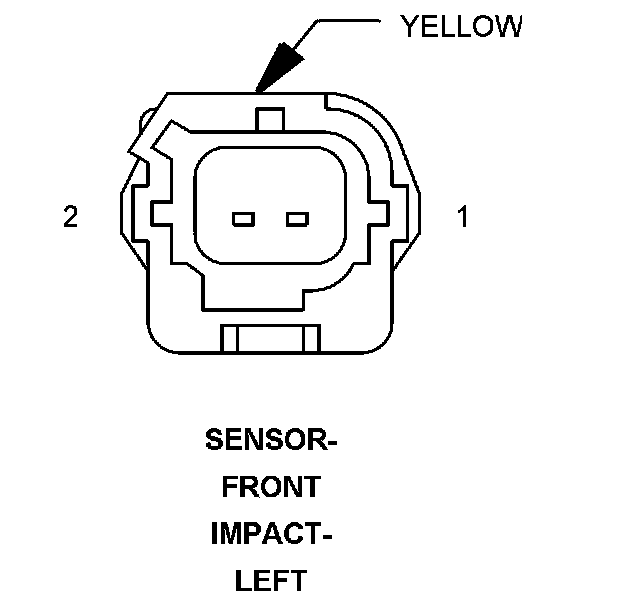

Connector:
Name : SENSOR-FRONT IMPACT-LEFT
Color : YELLOW
# of pins : 2
Pin Circuit Description
1 R81 20DG/YL LEFT FRONT IMPACT SENSOR GROUND
2 R79 20LB/VT LEFT FRONT IMPACT SENSOR SIGNAL

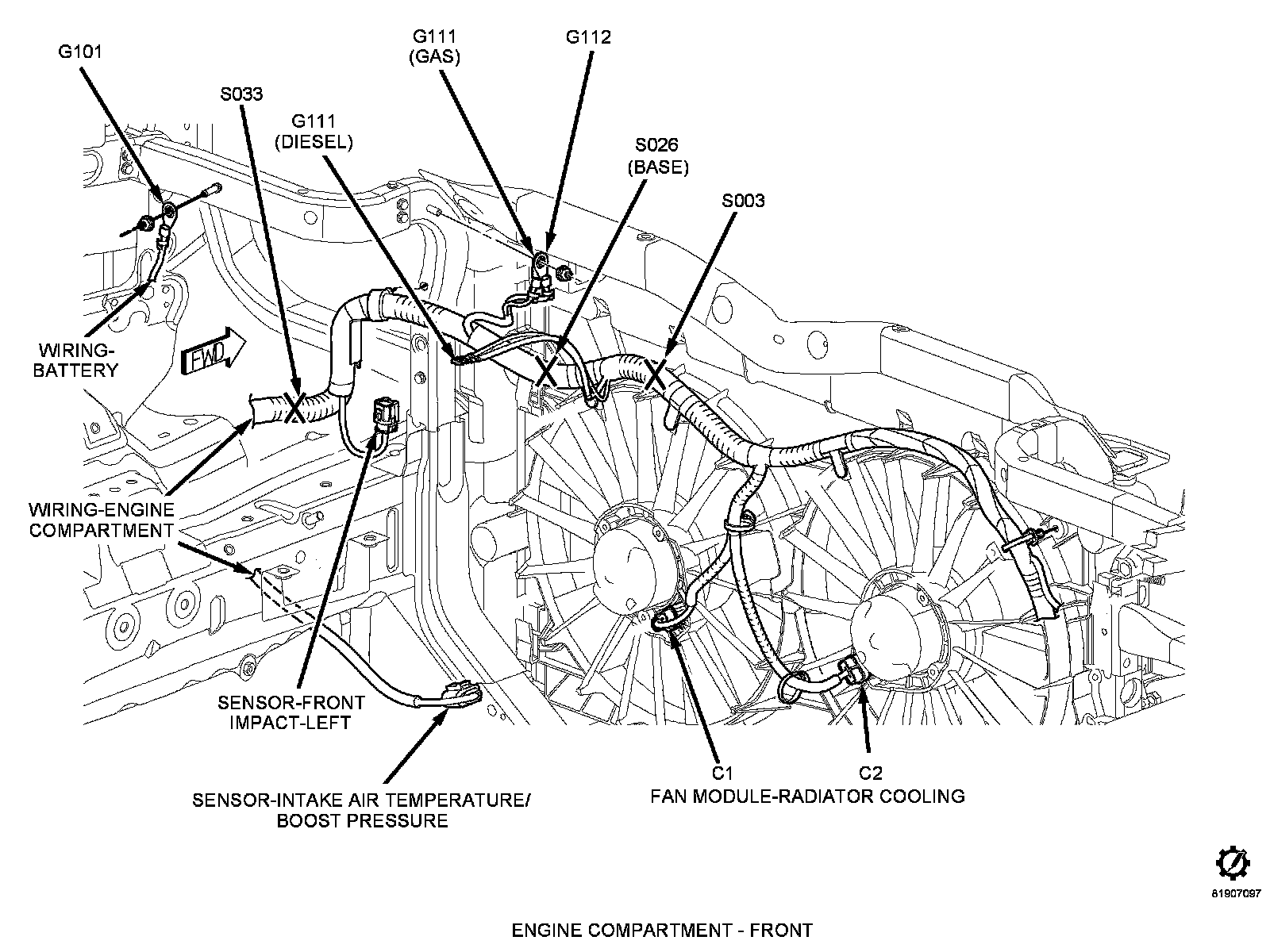

Component Location - 7
