2008 Jeep Compass 2WD L4-2.0L
Intake Manifold
2008 Jeep Compass 2WD L4-2.0LSECTION Intake Manifold
Intake Manifold
Intake Manifold bolts 25 Nm (220 in. lbs.).
Throttle Body
CAUTION: DO NOT OVER TORQUE. Over tightening can cause damage to the throttle body, gaskets, bolts and/or the intake manifold.

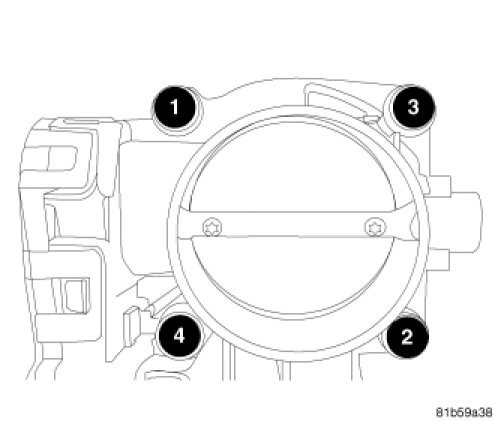

CAUTION: The throttle body must be torqued in a mandatory torque sequence. Tighten in a criss - cross pattern to specification.
Tighten the bolts in a mandatory torque criss - cross pattern sequence to 7.5 Nm (65 in. lbs.).
