2008 Jeep Compass 2WD L4-2.0LFACTORY OEM SERVICE PROCEDURE
Transmission Position Sensor/Switch, CVT

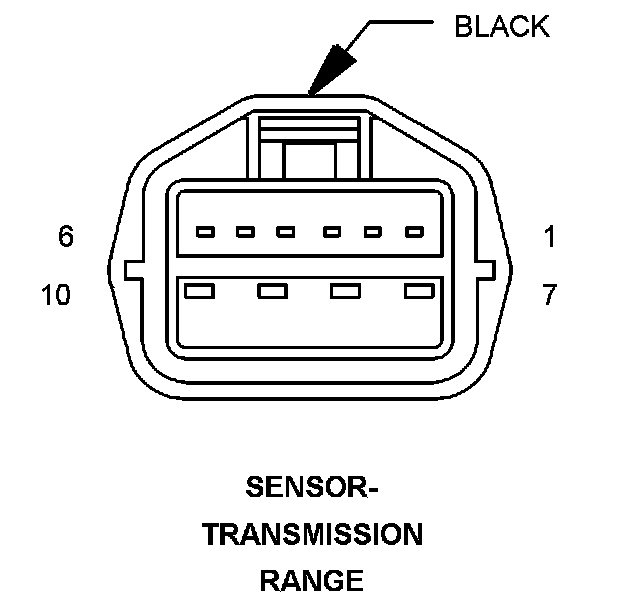

Sensor - Transmission Range (Body) 10 Way
Cavity Circuit Function
1 T1 20DG/GY TRS T1 SIGNAL
2 T41 20YL/BK TRS T41 SIGNAL
3 T16 20YL/OR TRANSMISSION CONTROL OUTPUT
4 - -
5 T3 20DG/DB TRS T3 SIGNAL
6 - -
7 F962 20PK/BK IGNITION SWITCH OUTPUT (START)
8 T4 20DG/LB TRS T4 SIGNAL
9 T42 20DG/PK TRS T42 SIGNAL
10 F963 20PK/DB START ENABLE
