2008 Jeep Compass 2WD L4-2.0LFACTORY OEM SERVICE PROCEDURE
Alarm Module, (Vehicle Antitheft)
Component ID: 206
Component : MODULE-INTRUSION TRANSCEIVER
Connector:

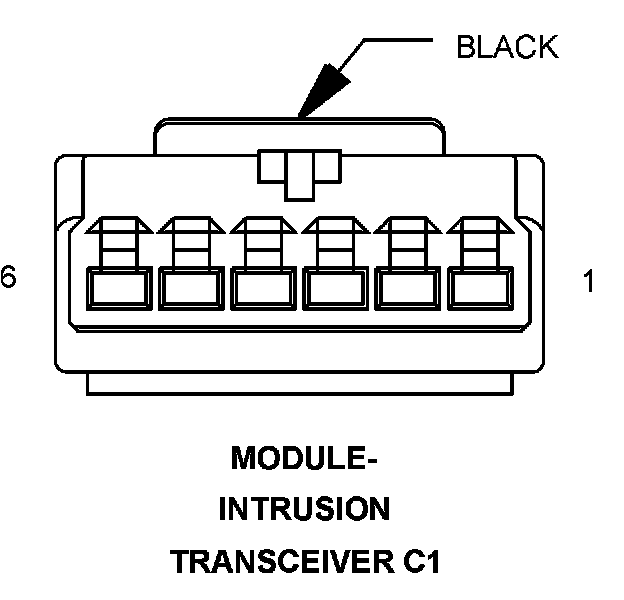

Name : MODULE-INTRUSION TRANSCEIVER C1
Color : BLACK
# of pins : 6
Pin Circuit Description
1 A415 20RD/TN FUSED B(+) (I.O.D.)
2 - -
3 D55 20WT/OR CAN B BUS (+)
4 D54 20WT/PK CAN B BUS (-)
5 D96 20WT/BR SIREN SIGNAL CONTROL
6 Z941 20BK/WT GROUND

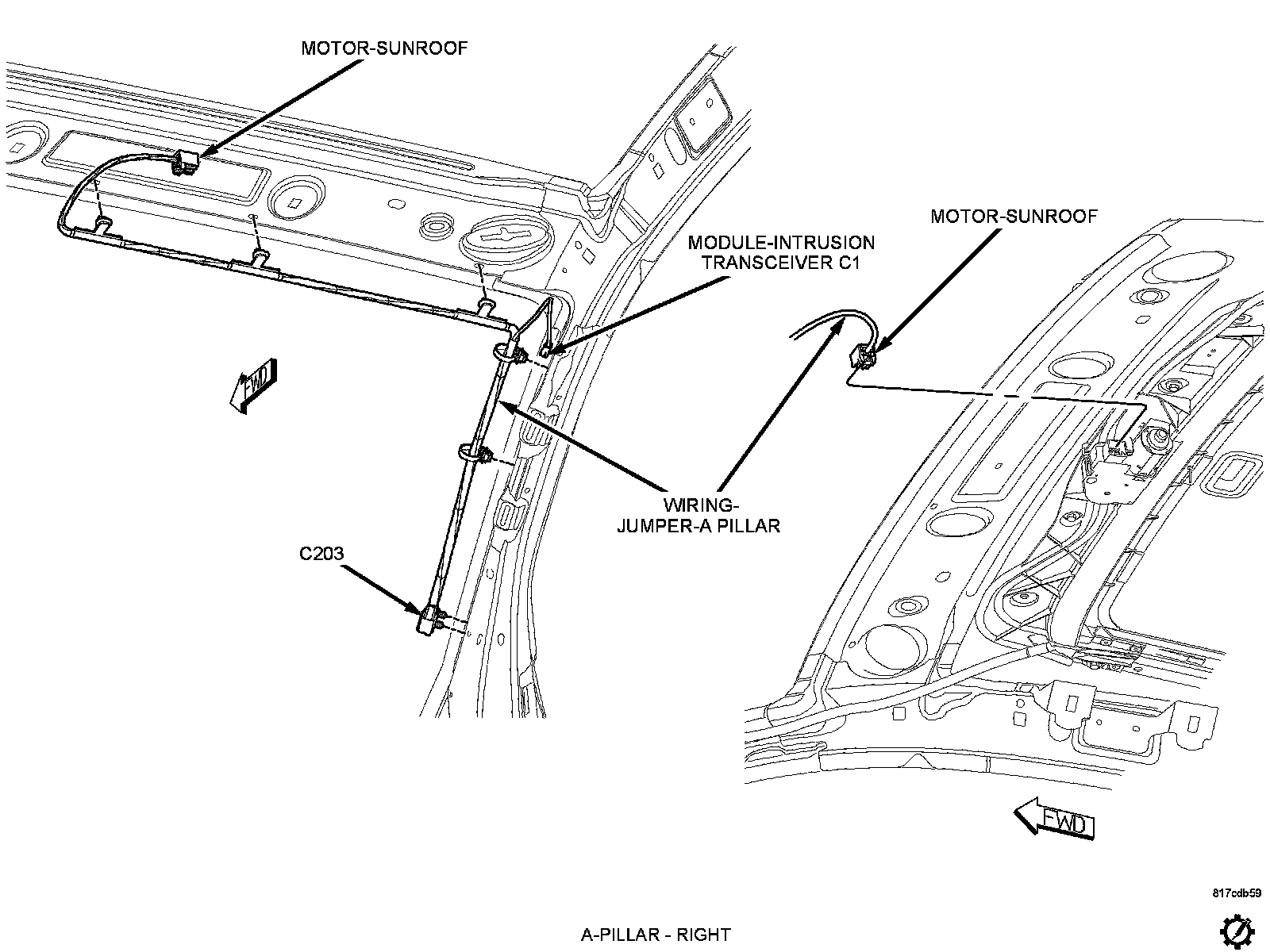

Component Location - 35

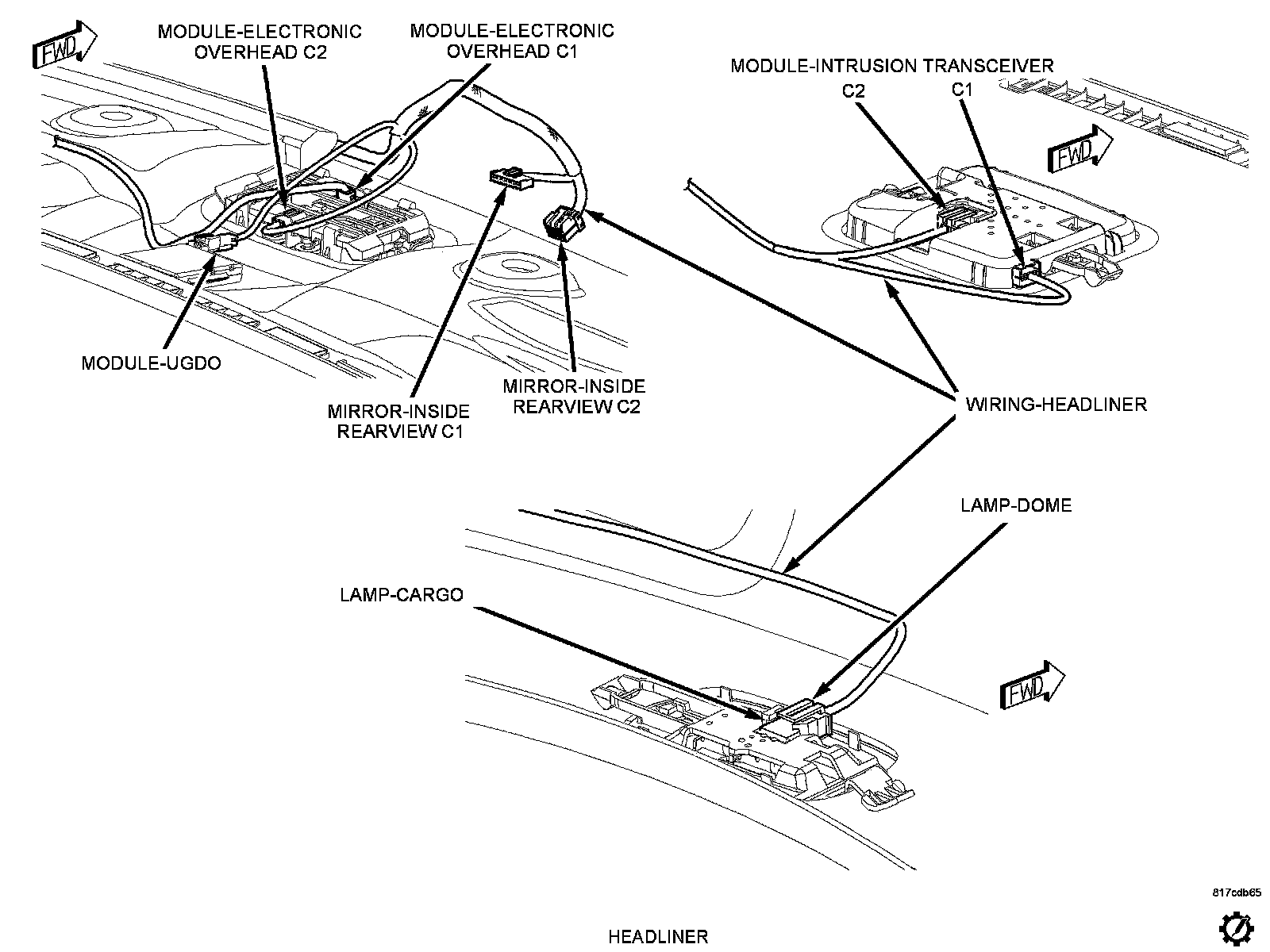

Component Location - 37
Connector:

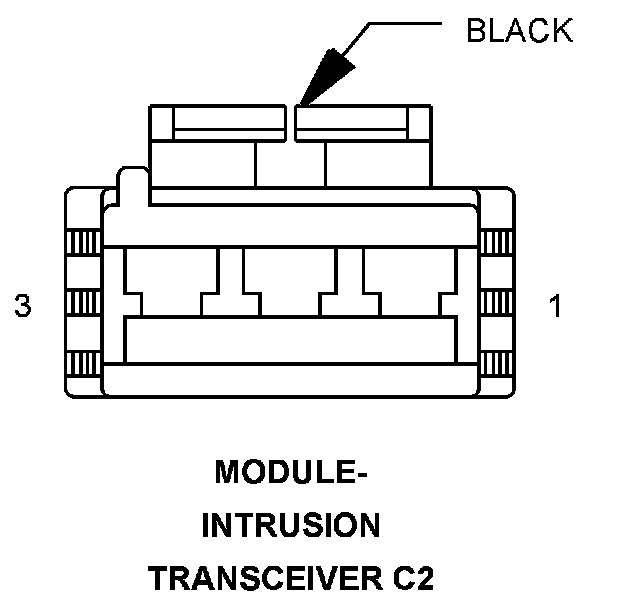

Name : MODULE-INTRUSION TRANSCEIVER C2
Color : BLACK
# of pins : 3
Pin Circuit Description
1 - -
2 M24 20YL/WT COURTESY LAMPS DRIVER
3 Z941 20BK/WT GROUND
Component Location - 35
Component Location - 37
