2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

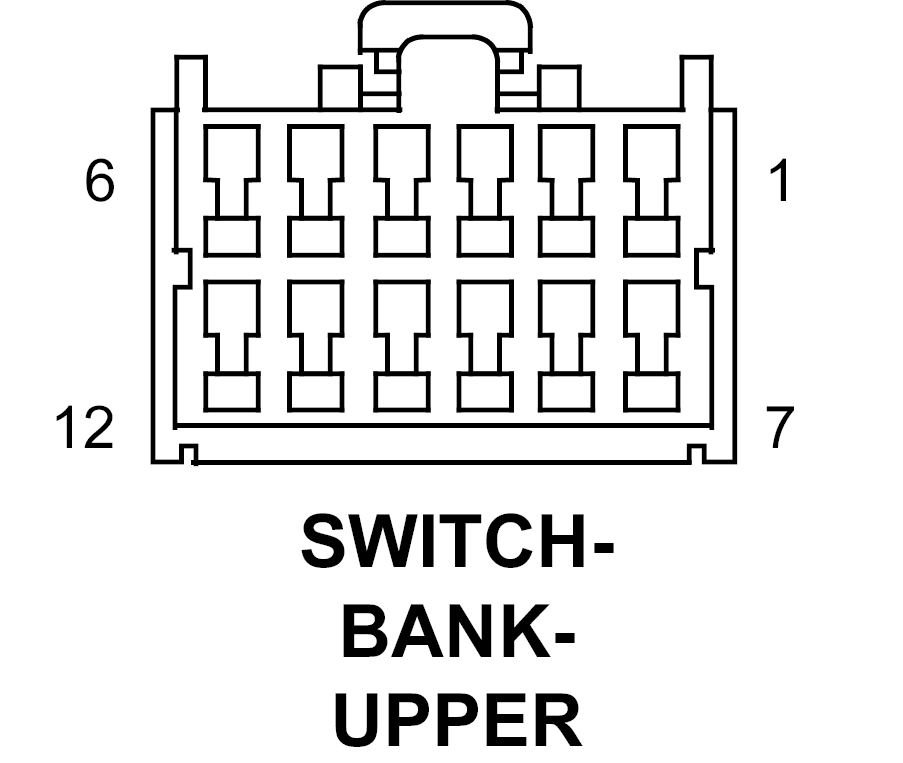

Upper Bank Switch Connector End View
SWITCH-BANK-UPPER - 12-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | - | - |
| 2 | F921 20PK/YL | FUSED RUN RELAY OUTPUT |
| 3 | G105 20VT/YL | C/T SWITCH INPUT |
| 4 | L13 20WY/YL | HEADLAMP LEVEL SENSOR SIGNAL |
| 5 | L778 20WT/LB | FUSED PARK LAMP RELAY OUTPUT |
| 6 | C105 20LB/LG | REAR HVAC CONTROL |
| 7 | G108 20VT/DB | RESET SWITCH INPUT |
| 8 | Z18 20BK/LB | GROUND |
| 9 | G102 20VT/GY | MENU SWITCH INPUT |
| 10 | G103 20VT/LB | STEP SWITCH INPUT |
| 11 | E2 20OR/BR | PANEL LAMPS DRIVER |
| 12 | Z906 20BK | GROUND |
