2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

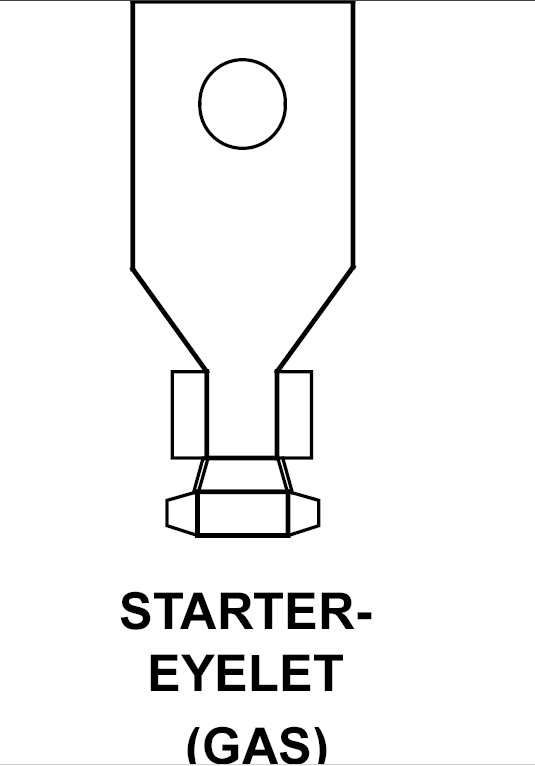

Starter (Gas) Connector End View

STARTER-EYELET - 1-WAY(GAS)

GXK780410Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A11 10BR/RD FUSED B(+)
1 A8 6RD B(+)
