2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

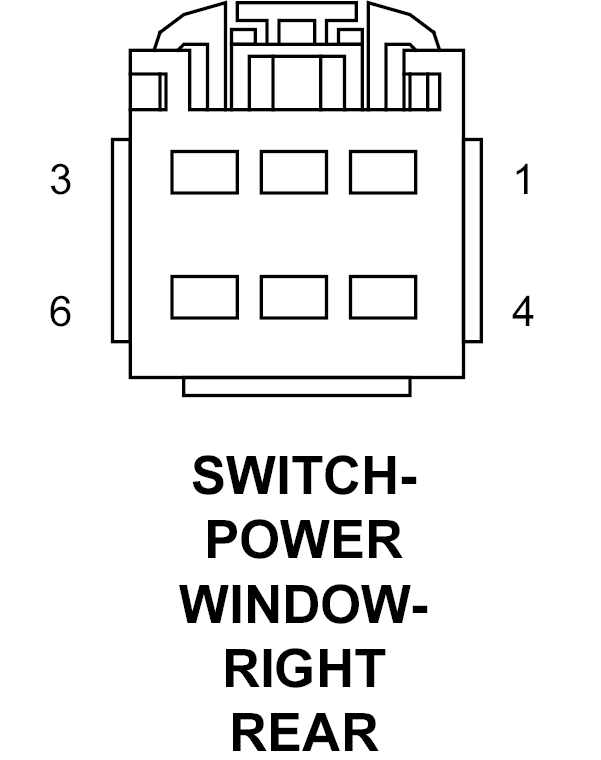

Right Rear Power Window Switch Connector End View
SWITCH-POWER WINDOW-RIGHT REAR - 6-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | Q612 16OR/DB | MASTER WINDOW SWITCH RIGHT REAR (DOWN) |
| 2 | Q212 16OR/VT | RIGHT REAR WINDOW DRIVER (DOWN) |
| 3 | Q112 16OR/BR | RIGHT REAR WINDOW DRIVER (UP) |
| 4 | Q412 16OR/LB | MASTER WINDOW SWITCH RIGHT REAR (UP) |
| 5 | - | - |
| 6 | Q15 16OR/LB | WINDOW LOCK OUT SWITCH OUTPUT |
