2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

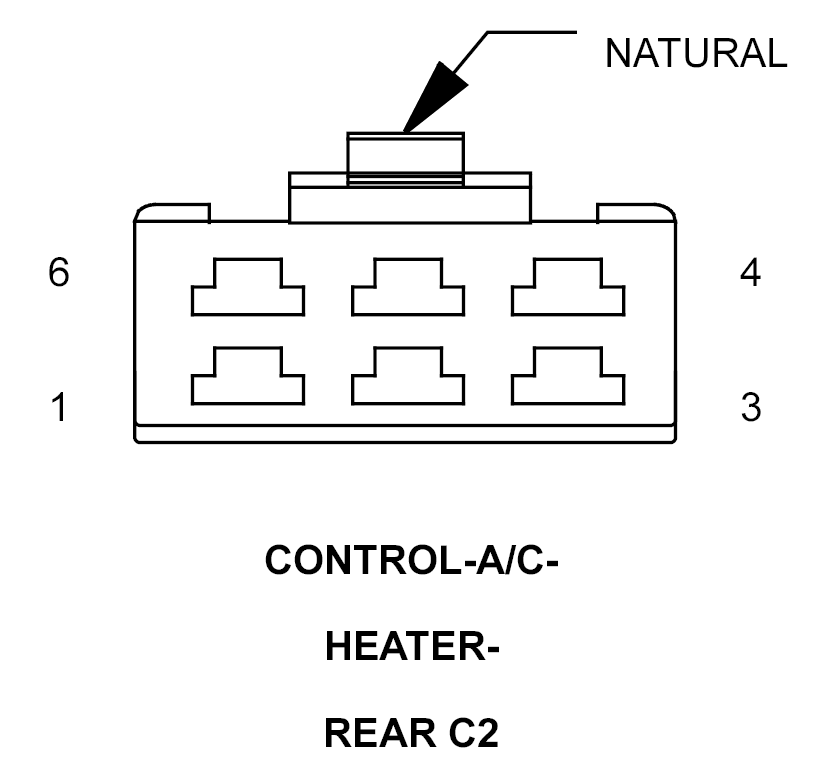

Rear A/C Heater Control Connector End View (C2)

CONTROL-A/C-HEATER-REAR C2 - NATURAL 6-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	C153 14DB/VT	REAR BLOWER HIGH SPEED
2	C152 16LB	REAR BLOWER MEDIUM SPEED
3	C151 16DB/BR	REAR BLOWER LOW SPEED
4	Z908 14BK	GROUND
5	-	-
6	-	-
