2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

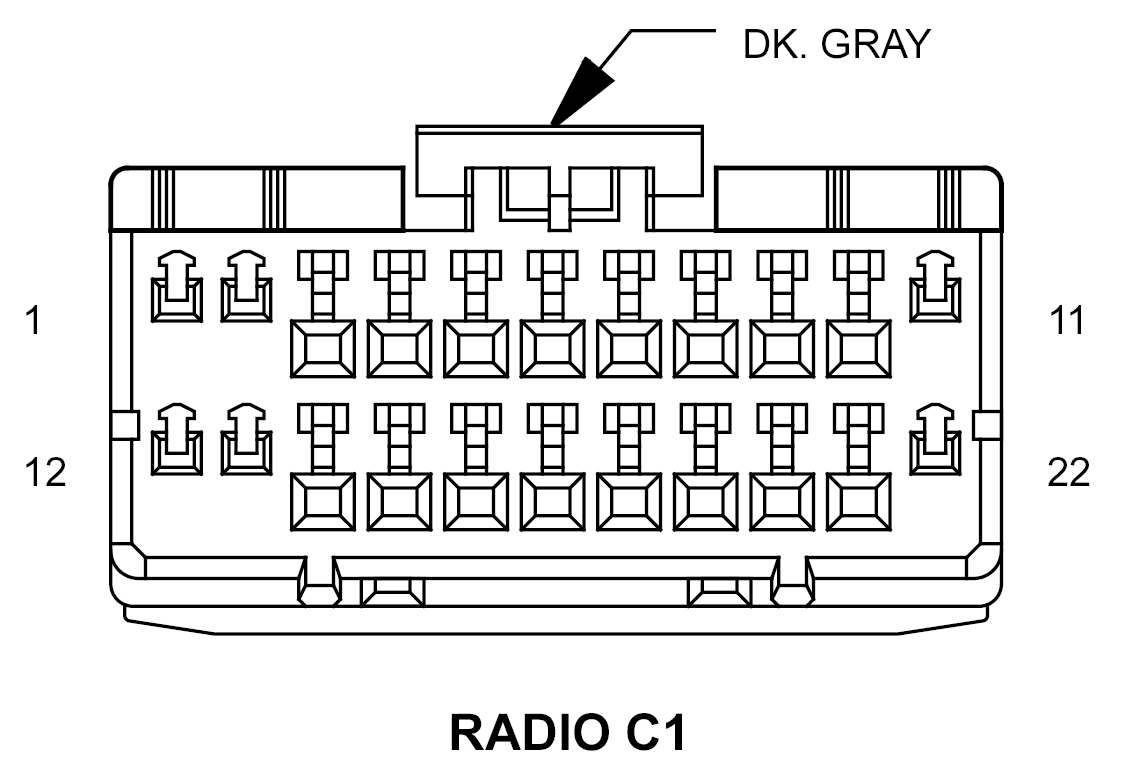

Radio Connector End View (C1)

RADIO C1 - DK. GRAY 22-WAY

GXK780298Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 A118 16RD/OR FUSED B(+)
2 - -
3 - -
4 X703 20DG/OR LEFT AUDIO OUTPUT (HANDS FREE)
5 D55 20WT/OR CAN B BUS (+)
6 D54 20WT CAN B BUS (-)
7 X54 18GY RIGHT I/P SPEAKER (+) (BASE)
8 X56 18GY/BR RIGHT I/P SPEAKER (-) (BASE)
9 X55 18DG/BR LEFT I/P SPEAKER (-) (BASE)
10 X53 18DG LEFT I/P SPEAKER (+) (BASE)
11 Z920 16BK GROUND
12 A118 16RD/OR FUSED B(+)
13 - -
14 - -
15 - -
16 X704 20DG/YL RIGHT AUDIO OUTPUT (HANDS FREE)
17 X795 20DG COMMON AUDIO OUTPUT (HANDS FREE)
18 X51 18DG/DB LEFT REAR AUDIO (+)
19 X57 18DG/VT LEFT REAR AUDIO (-)
20 X58 18GY/TN RIGHT REAR AUDIO (-)
21 X52 18GY/DB RIGHT REAR AUDIO (+)
22 Z920 16BK GROUND
