2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

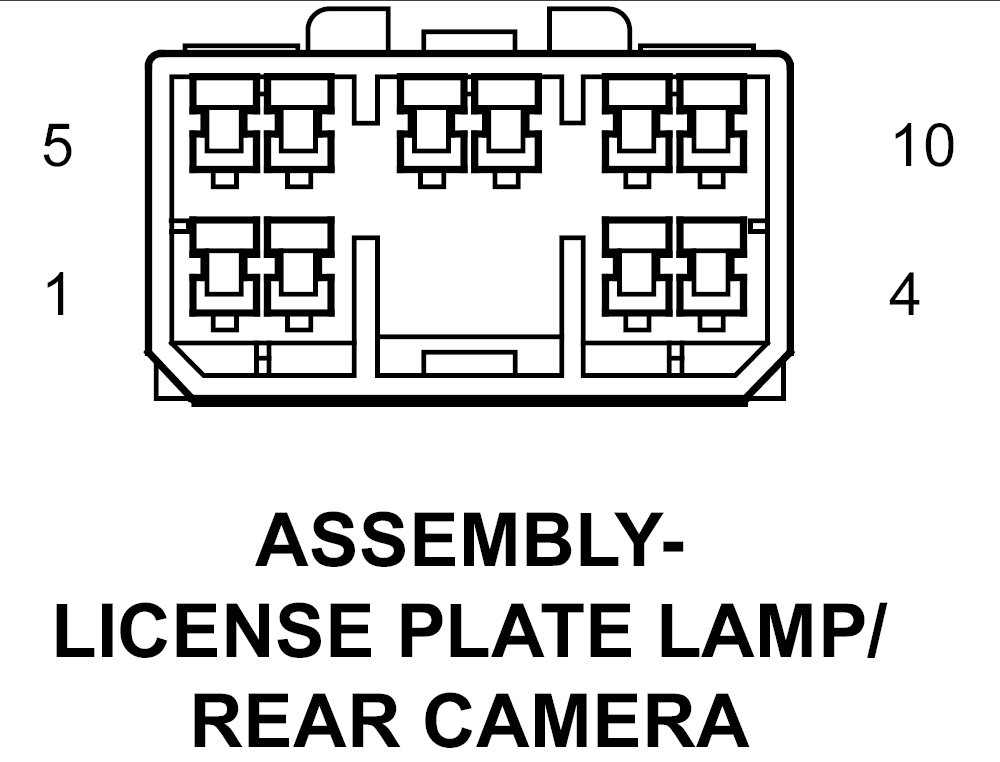

License Plate Lamp/Rear Camera Assembly Connector End View
ASSEMBLY-LICENSE PLATE LAMP/REAR CAMERA - 10-WAY
| CAV | CIRCUIT | FUNCTION |
| 1 | L777 20WT/VT | FUSED PARK LAMP RELAY OUTPUT |
| 2 | Z800 20BK | GROUND |
| 3 | Q80 20OR/VT | FLIP-UP GLASS SWITCH SENSE |
| 4 | - | - |
| 5 | Q94 20TN/LG | LIFTGATE CHIME DRIVER (POWER LIFTGATE) |
| 6 | X971 20DG/OR | CAMERA RETURN (REAR CAMERA) |
| 7 | X970 20DG/BR | CAMERA SIGNAL (REAR CAMERA) |
| 8 | X972 20DG/WT | CAMERA SHIELD (REAR CAMERA) |
| 9 | - | - |
| 10 | L1 16WT/LG | BACKUP LAMP FEED (REAR CAMERA) |
