2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

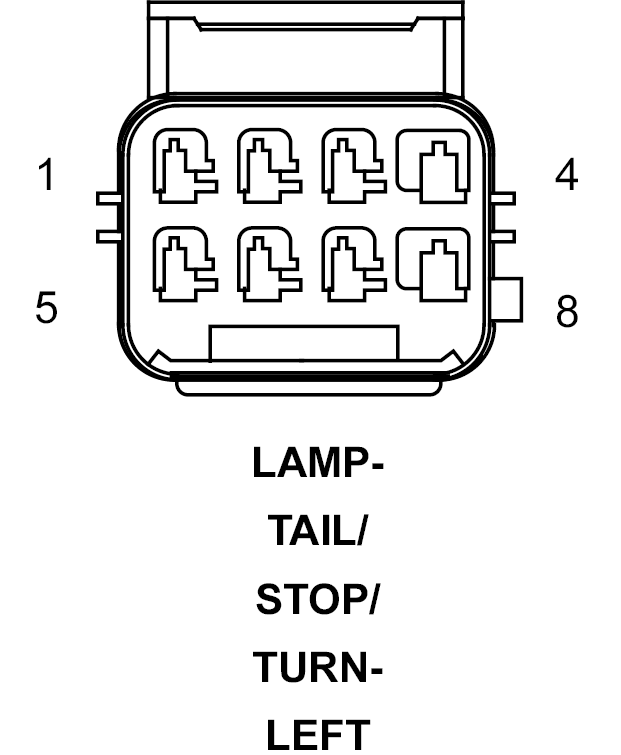

Left Tail Stop Lamp/Turn Lamp Connector End View

LAMP-TAIL/STOP/TURN-LEFT - 8-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	L50 18WT/TN	BRAKE LAMP SWITCH OUTPUT
2	-	-
3	-	-
4	-	-
5	L777 20WT/VT	FUSED PARK LAMP RELAY OUTPUT
6	L1 18WT/LG	BACKUP LAMP FEED
7	L63 18WT/DG	LEFT REAR TURN SIGNAL CONTROL
8	Z918 18BK	GROUND
