2008 Jeep Commander Overland, RWDFACTORY OEM SERVICE PROCEDURE

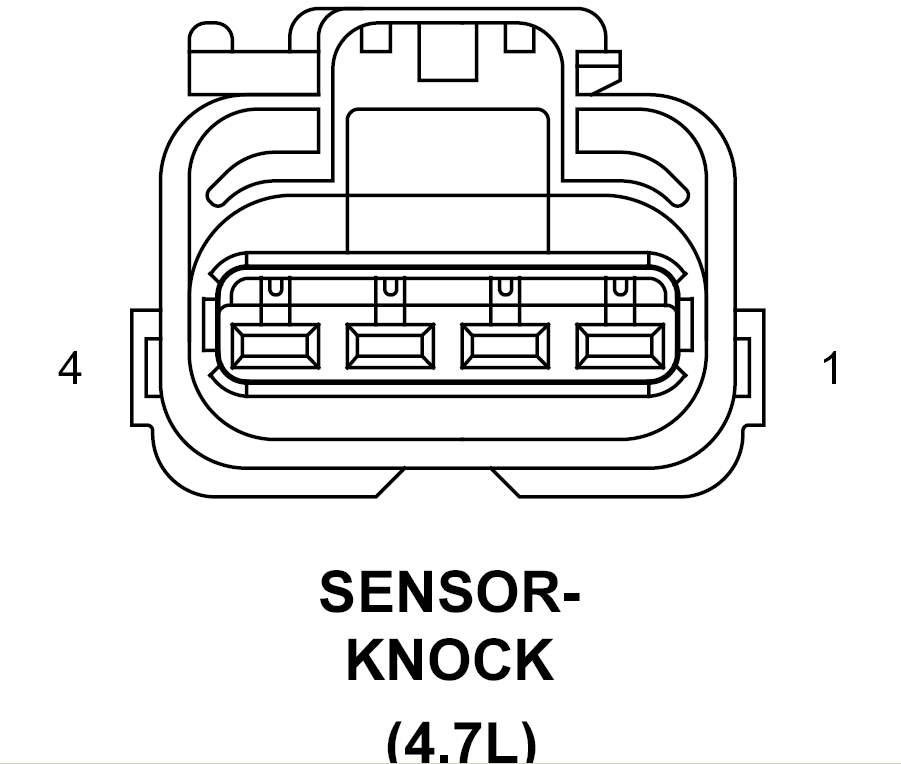

Knock Sensor (4.7L) Connector End View

SENSOR-KNOCK - 4-WAY(4.7L)

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	K942 20BR/LG	KNOCK SENSOR NO. 1 RETURN
2	K42 20DB/OR	KNOCK SENSOR NO. 1 SIGNAL
3	K924 20PK/RD	KNOCK SENSOR NO. 2 RETURN
4	K242 20BR/WT	KNOCK SENSOR NO. 2 SIGNAL
